Test AP: Injection Control Pressure Too High - Engine OFF

PINPOINT TEST AP: INJECTION CONTROL PRESSURE TOO HIGH - ENGINE OFF

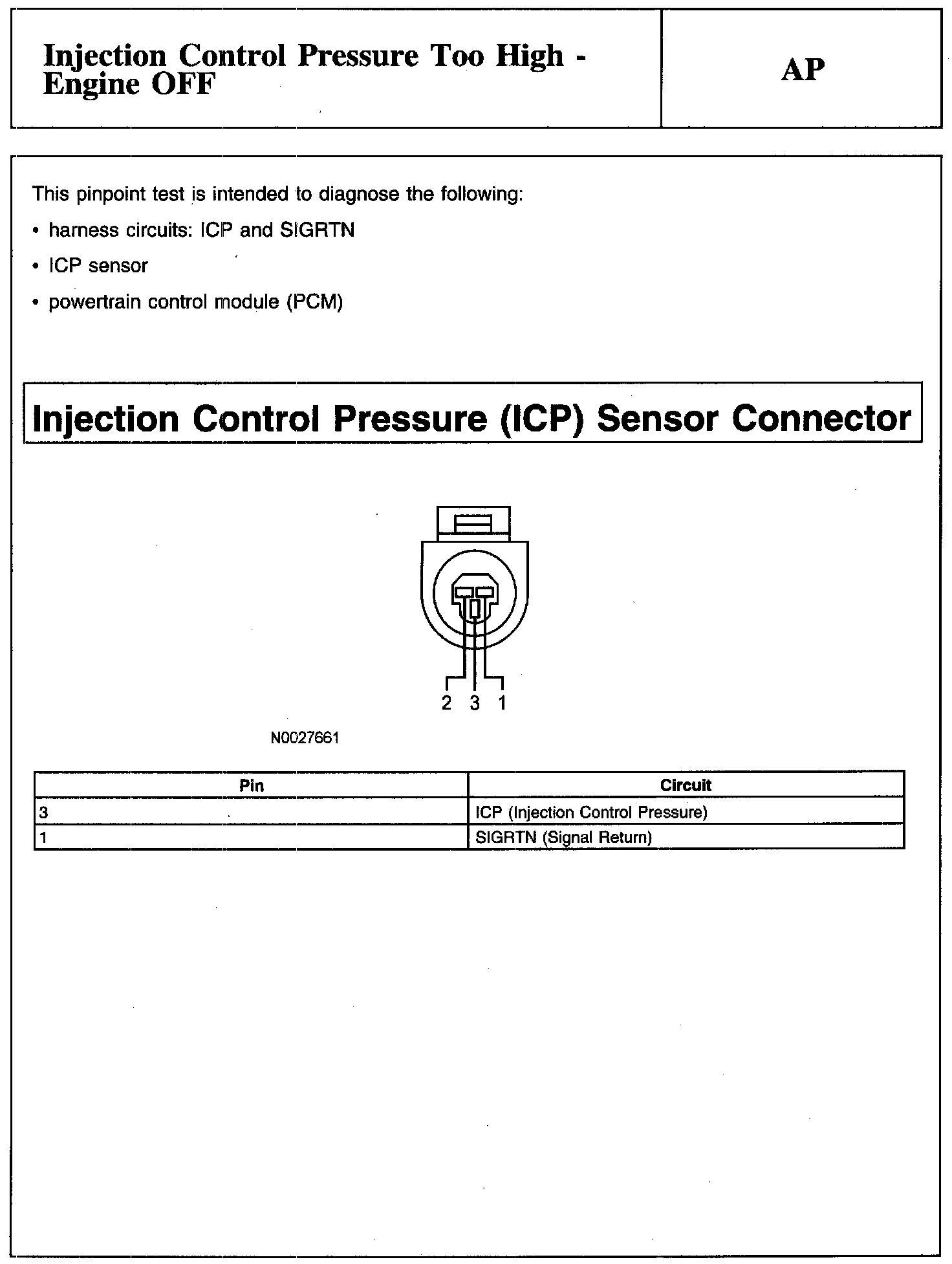

Injection Control Pressure (ICP) Sensor Connector:

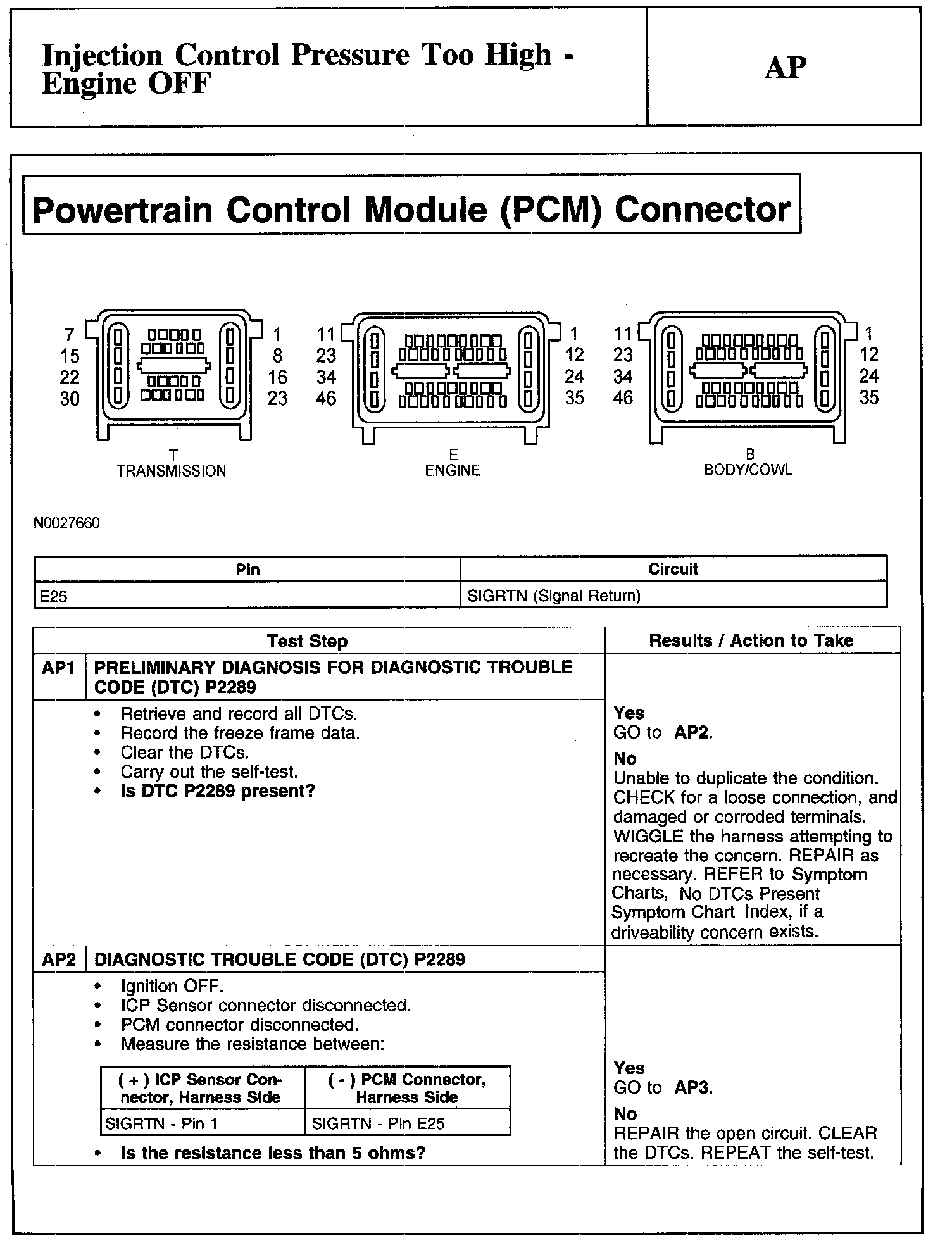

AP1-AP2:

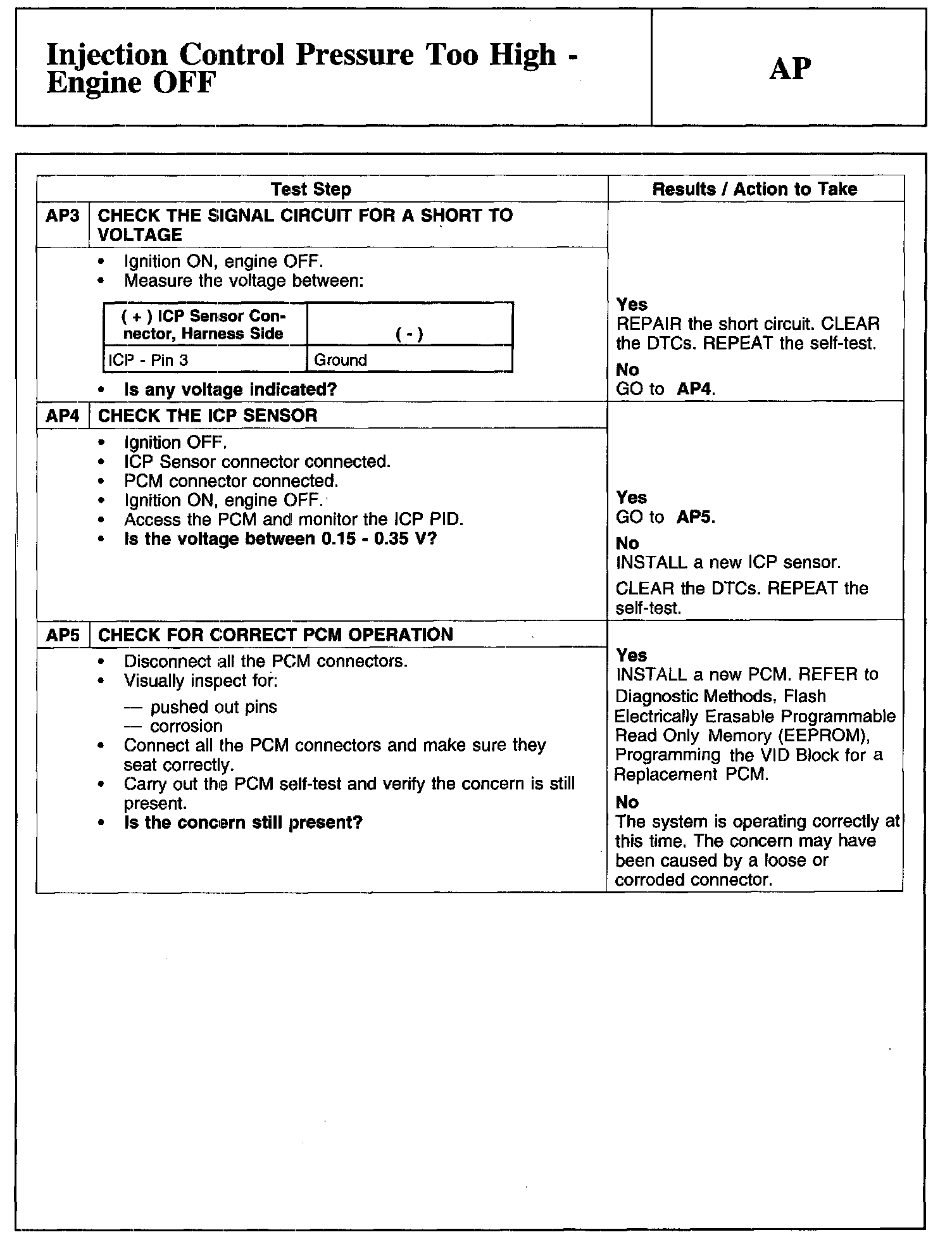

AP3-AP5:
