Test AS: Loss of Communication With The Fuel Injector Control Module (FICM)

PINPOINT TEST AS: LOSS OF COMMUNICATION WITH THE FUEL INJECTOR CONTROL MODULE (FICM)

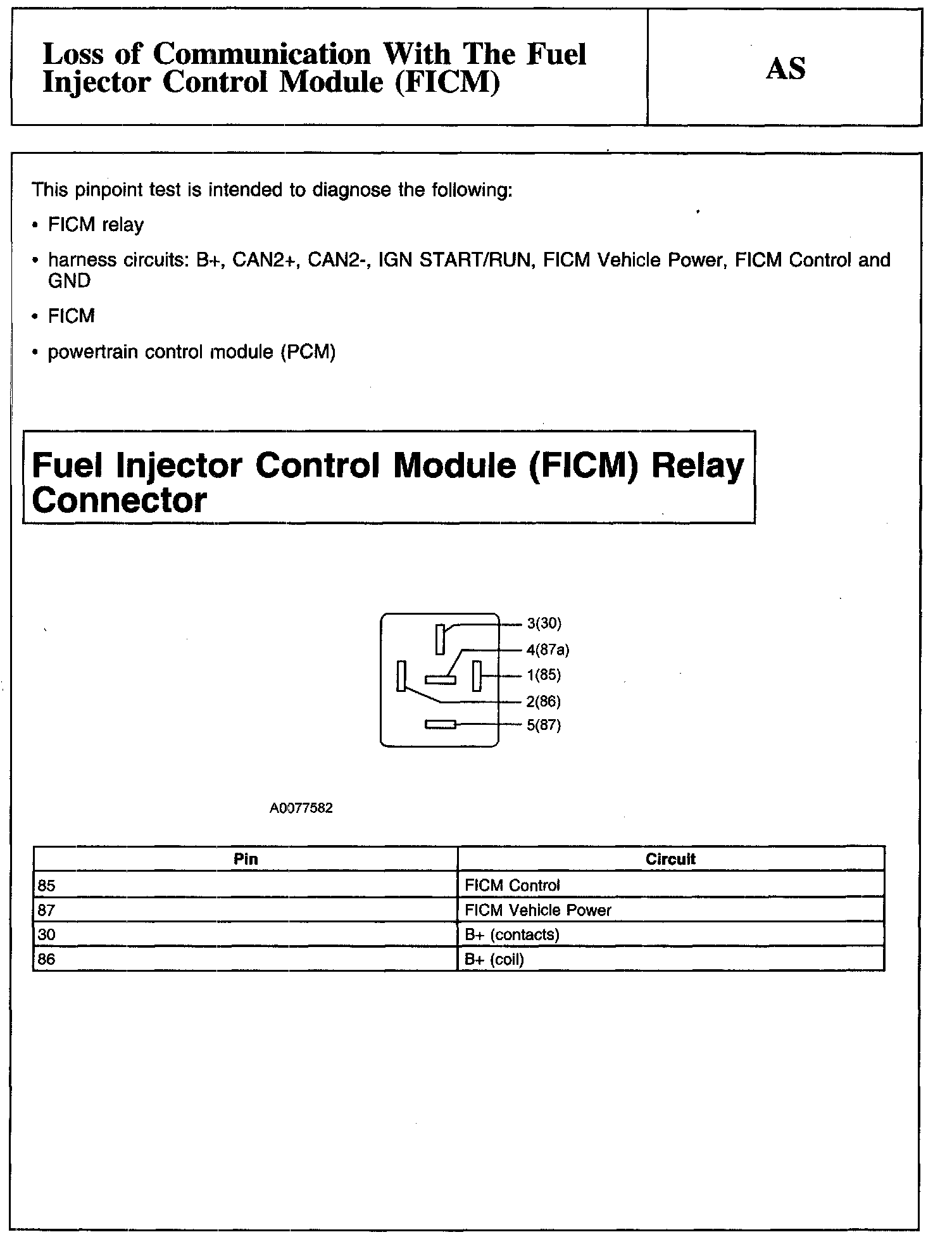

Fuel Injector Control Module (FICM) Relay Connector:

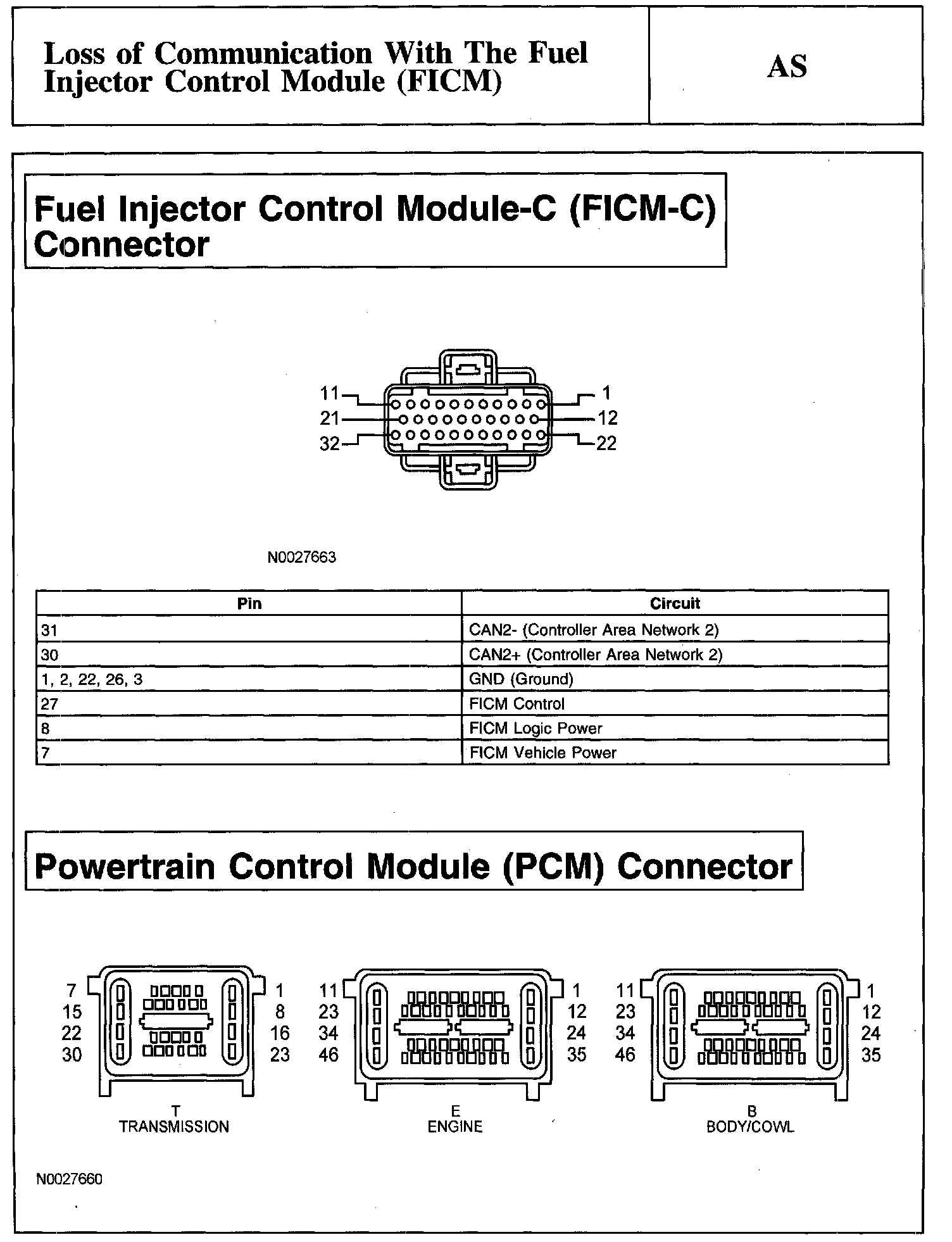

Fuel Injector Control Module-C (FICM-C) Connector And Powertrain Control Module (PCM) Connector:

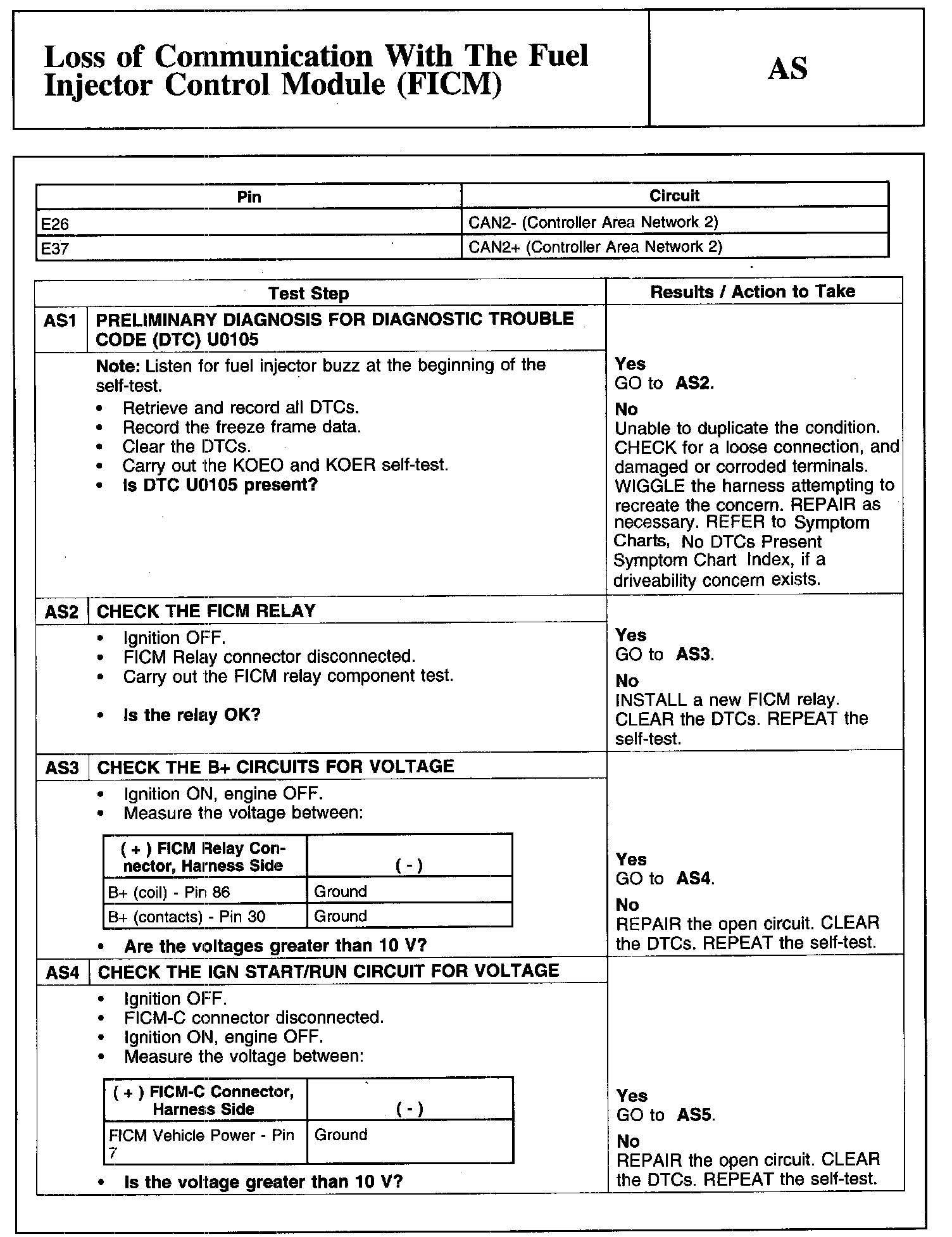

AS1-AS4:

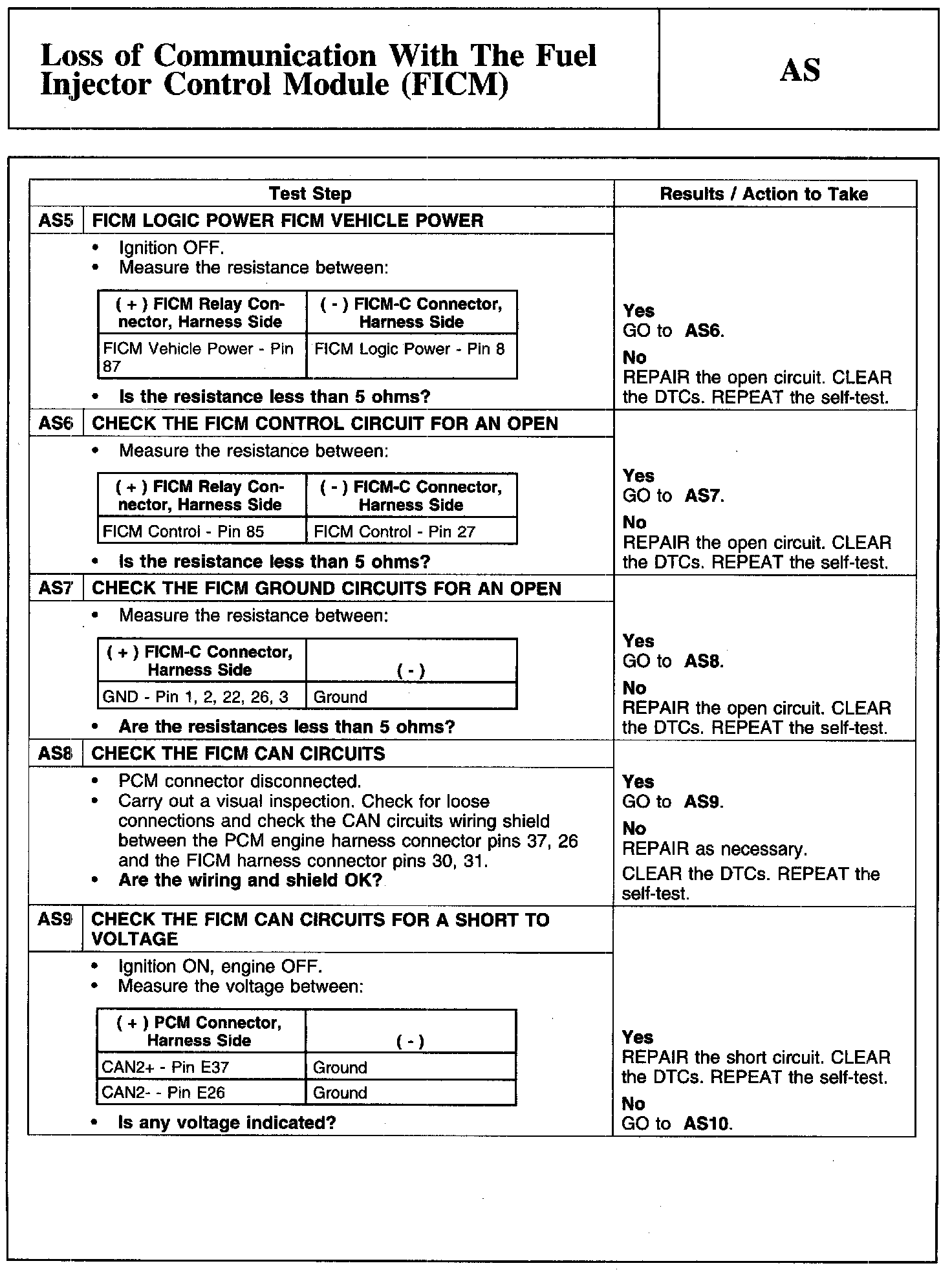

AS5-AS9:

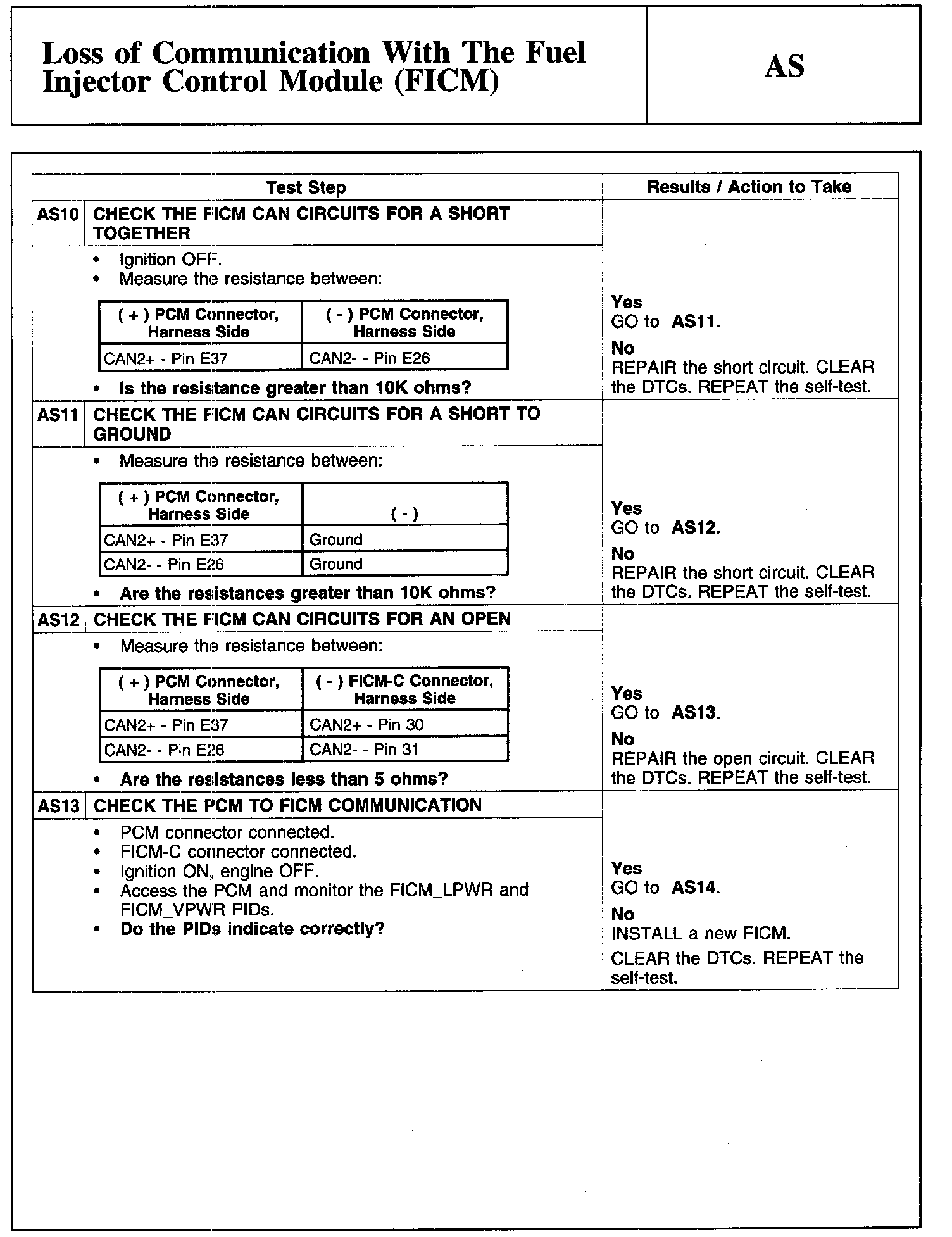

AS10-AS13:

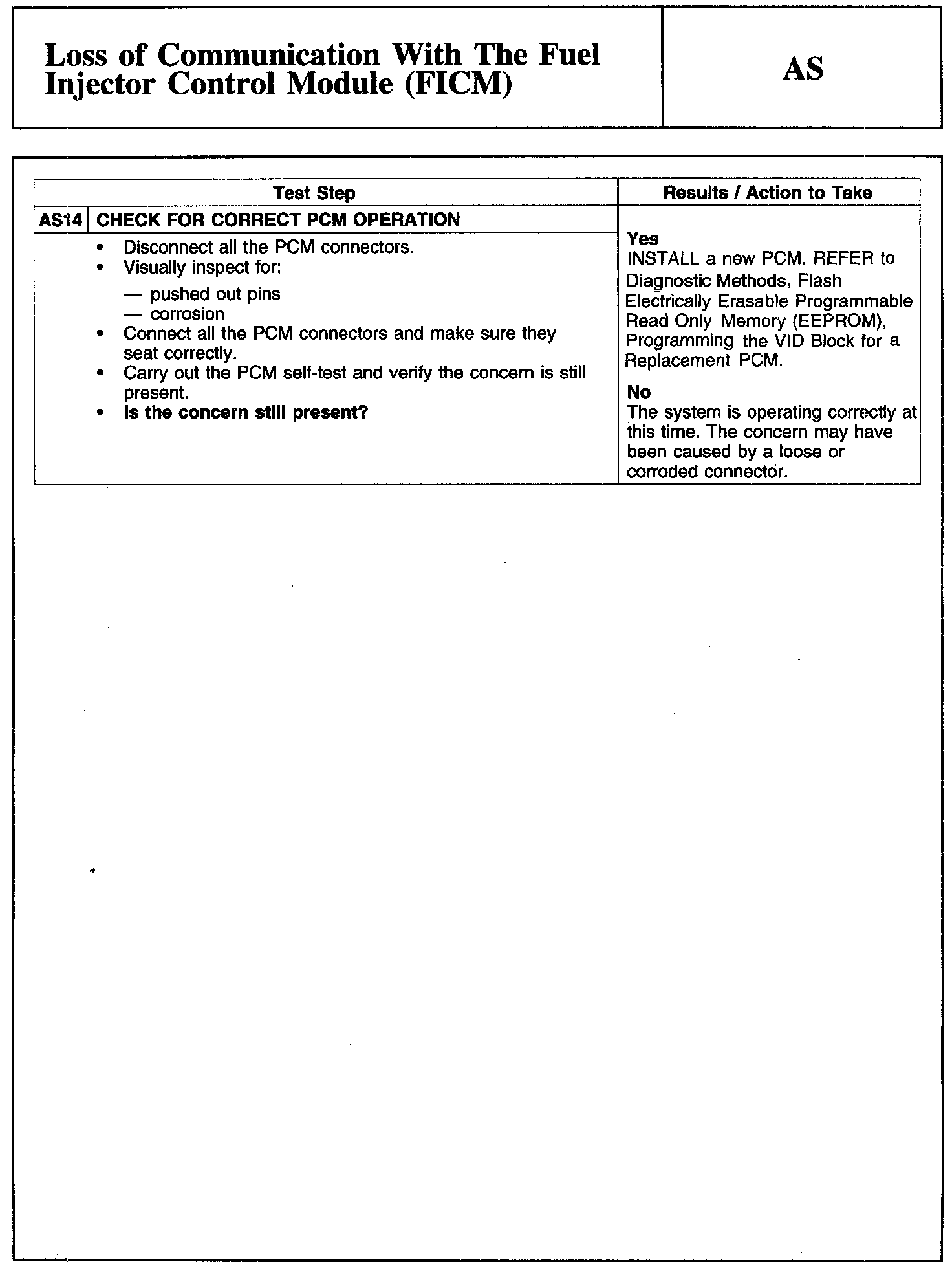

AS14:
