Test M: Fuel Pump Monitor/Control

PINPOINT TEST M: FUEL PUMP MONITOR/CONTROL

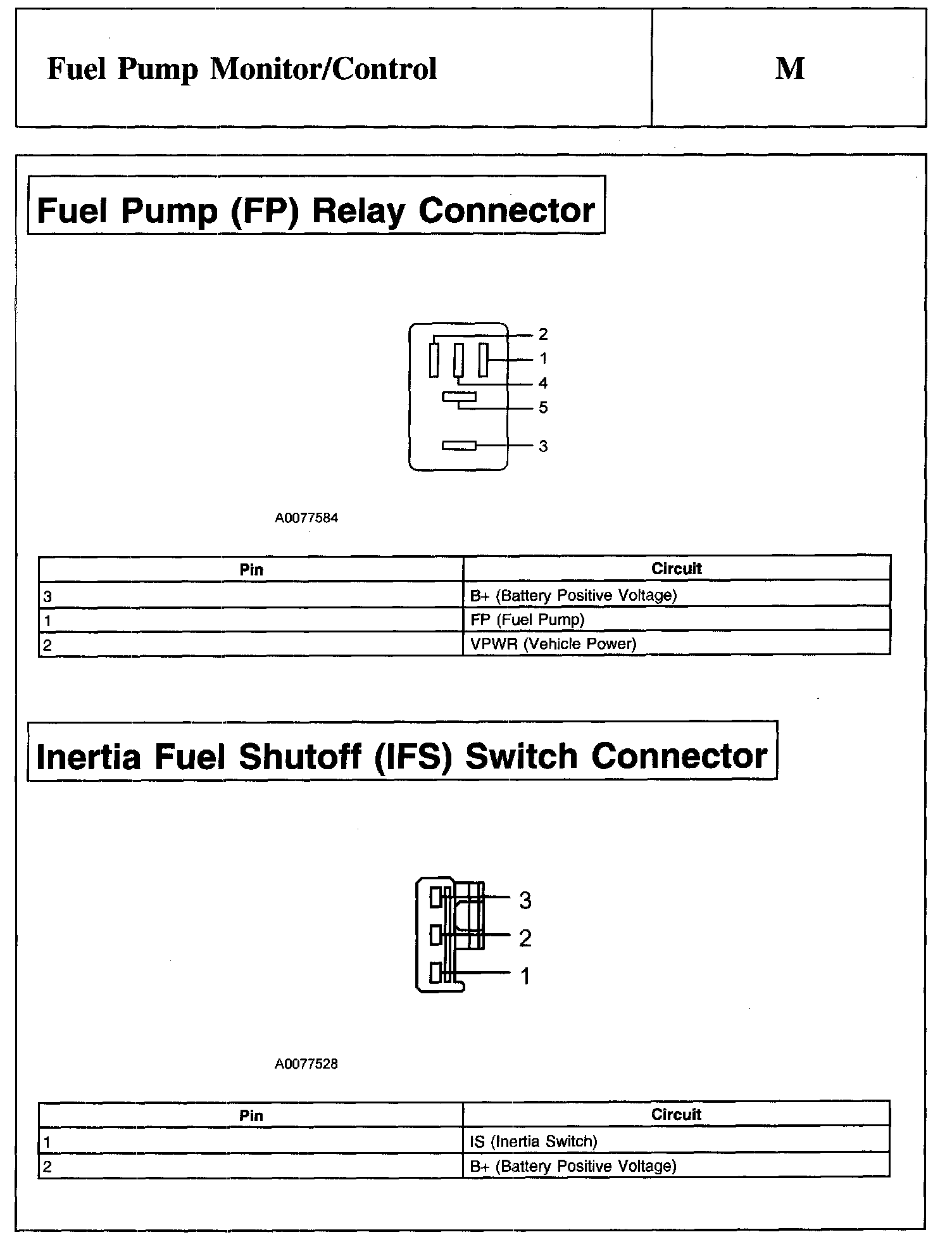

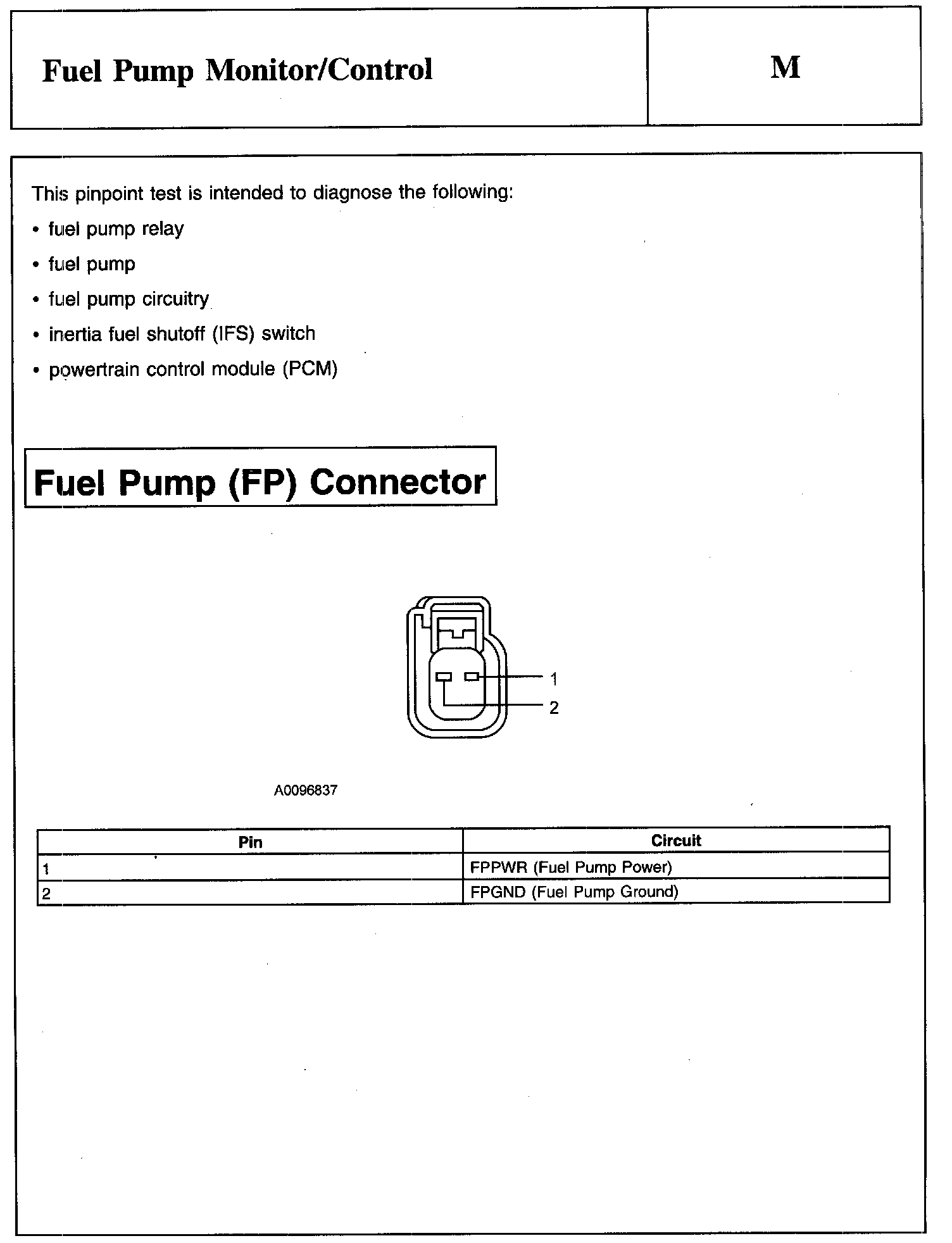

Fuel Pump (FP) Connector:






Fuel Pump (FP) Relay Connector And Inertia Fuel Shutoff (IFS) Switch Connector:

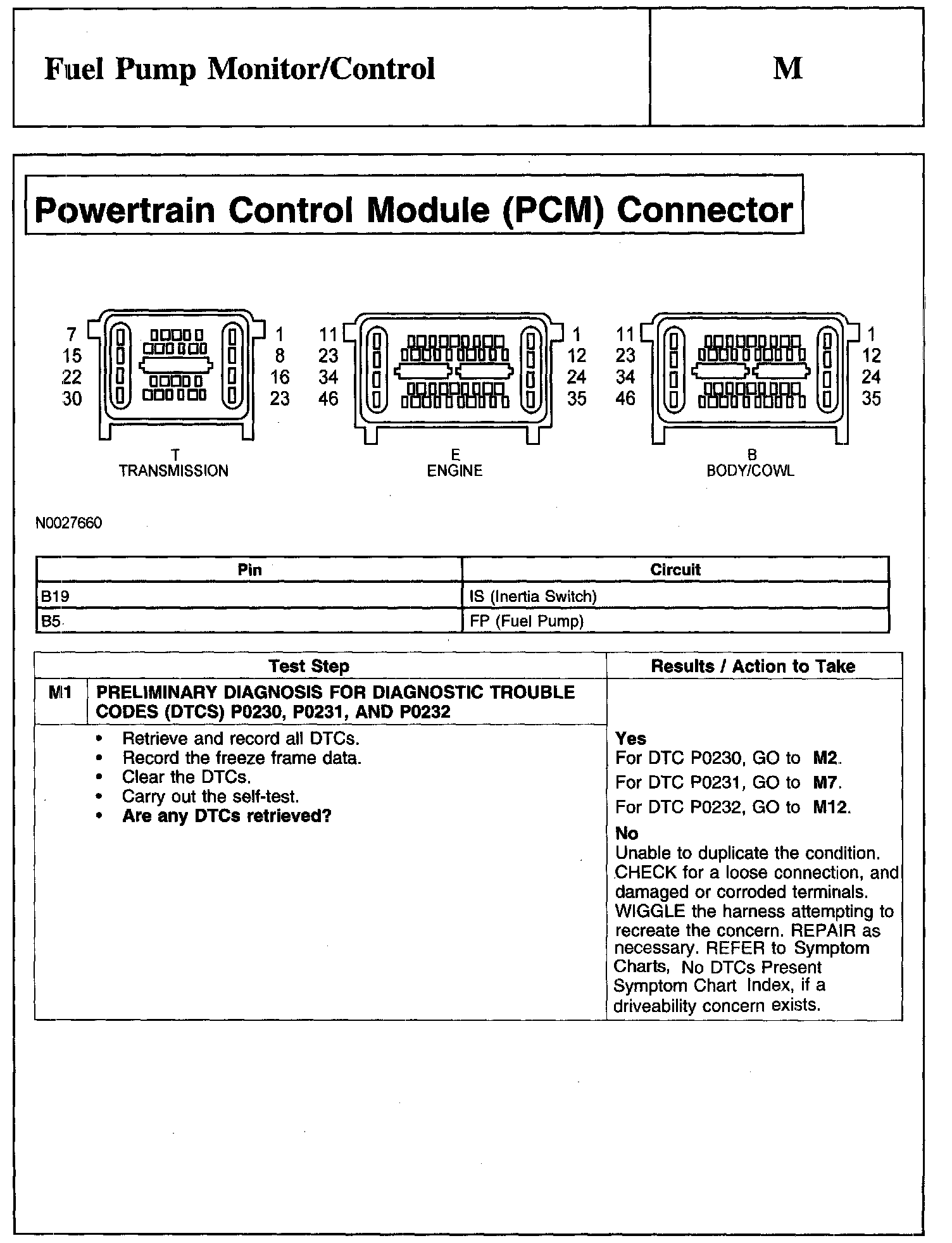

M1:

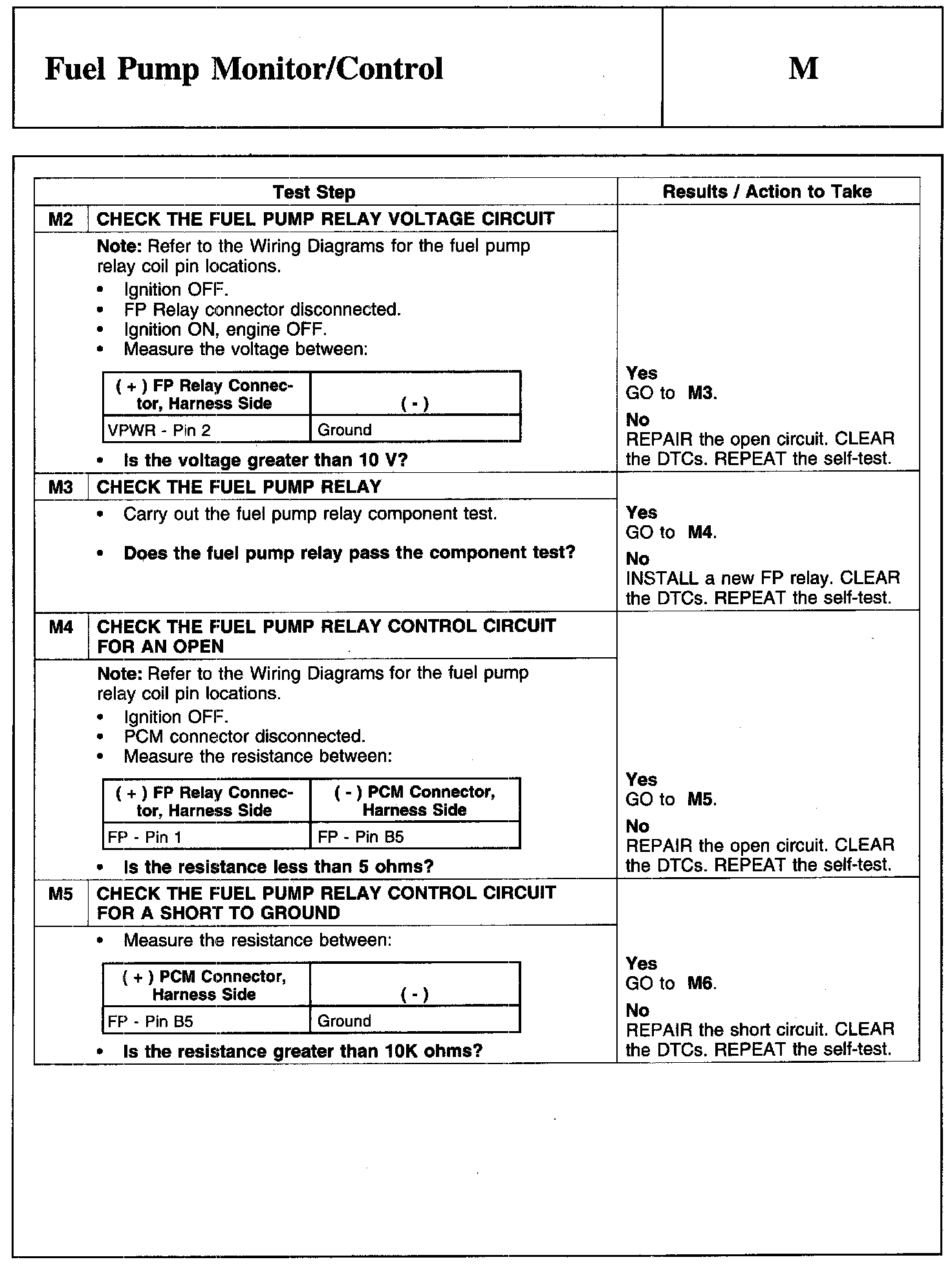

M2-M5:

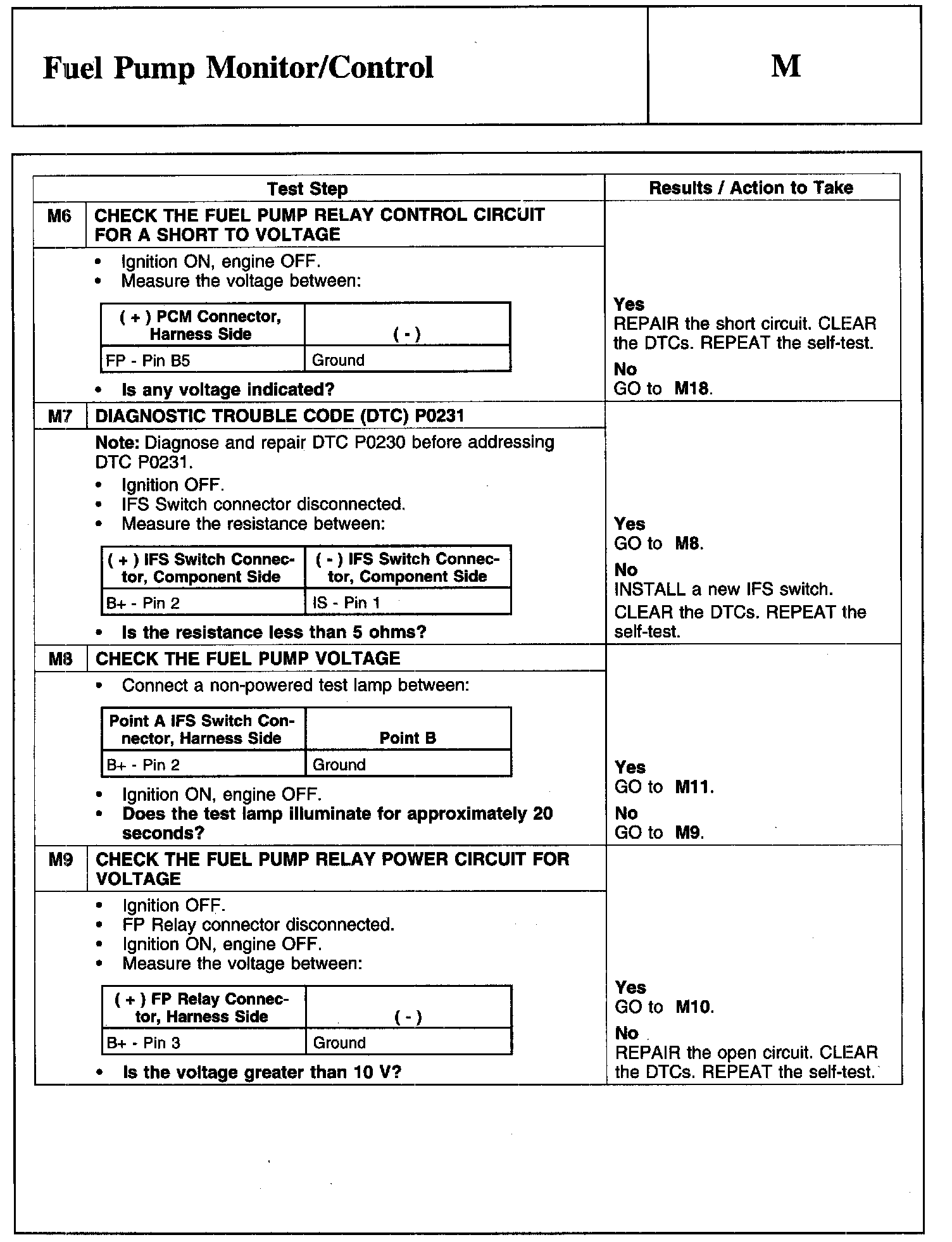

M6-M9:

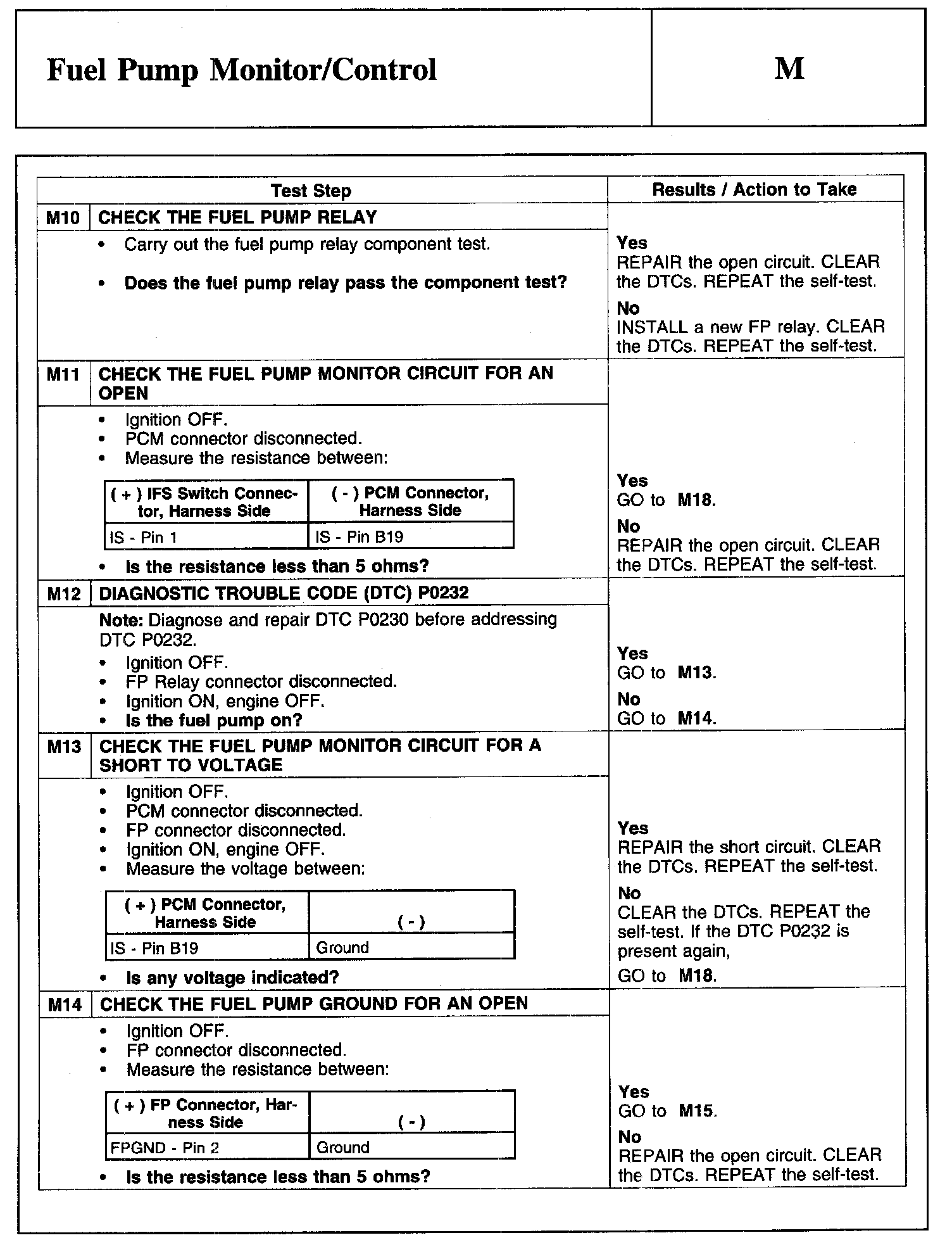

M10-M14:






M15-M18:
