5R55S

Transmission Support Insulator - Rear Wheel Drive (RWD)

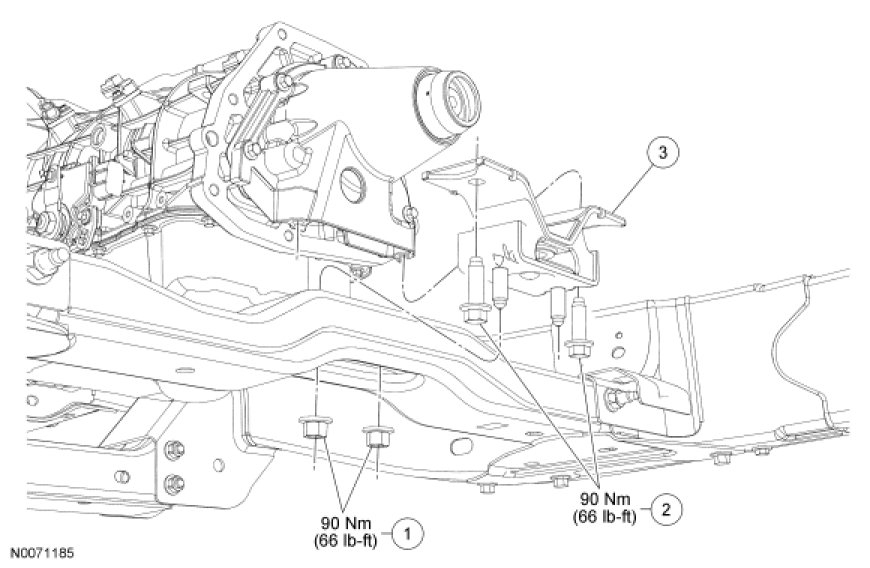

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Support the transmission with a transmission jack.

3. Remove the 2 transmission support insulator-to-crossmember nuts.





4. Remove the 2 transmission support insulator-to-extension housing screws.





5. Raise the transmission and remove the transmission support insulator.





Installation

1. Install the transmission support insulator and lower the transmission onto the transmission support insulator.





2. Install the 2 transmission support insulator-to-extension housing screws.
- Tighten to 90 Nm (66 lb-ft).





3. Install the 2 transmission support insulator-to-crossmember nuts.
- Tighten to 90 Nm (66 lb-ft).
