Sunroof / Moonroof: Service and Repair
Roof Opening Panel Manual Operation 1.
Remove the overhead console. For additional information, refer to Instrument Cluster / Carrier &/or
Interior Moulding / Trim.
2.

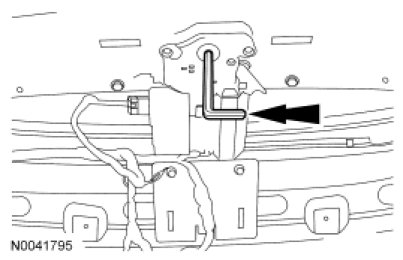

Insert an Allen wrench into the center of the manual drive hole of the roof opening panel motor. Rotate the Allen wrench counterclockwise until the roof opening panel is closed.
