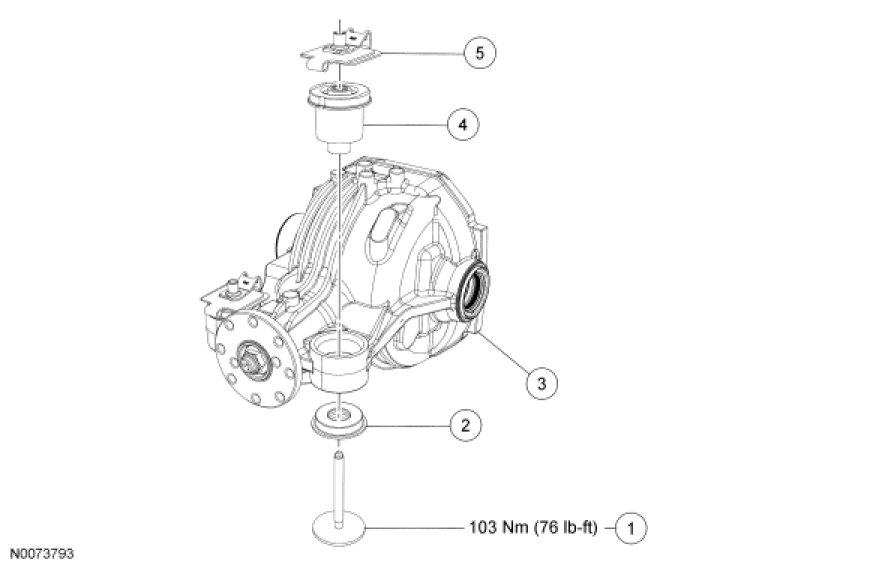

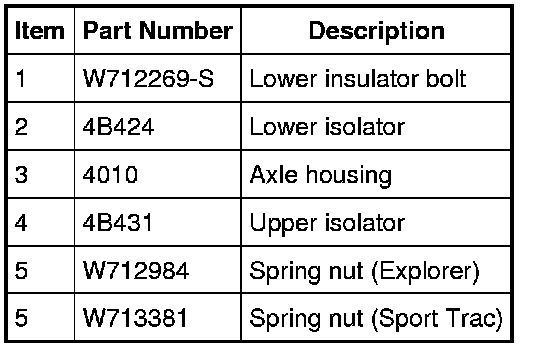

Rear Axle Housing Support Insulator




Rear Axle Housing Support Insulator













Removal

1. Remove the axle assembly. For additional information, refer to Axle Assembly Axle Assembly.

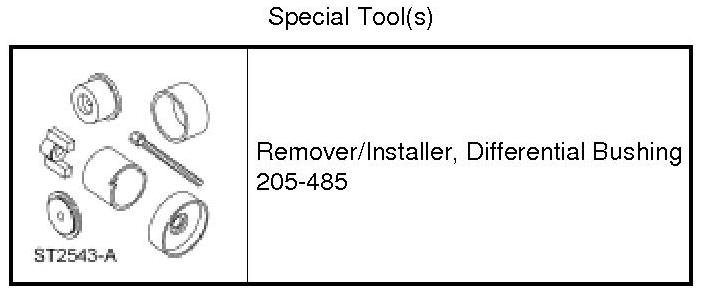

2. Using the Differential Bushing Remover/Installer, remove and discard the differential front lower insulator.

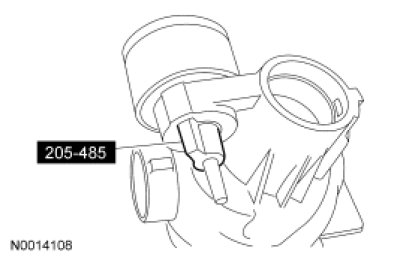

3. Using the Differential Bushing Remover/Installer, draw the differential rear insulator from the frame pocket.

Installation

1. Using the Differential Bushing Remover/Installer, draw the differential rear insulator into the frame pocket.
- There is no orientation requirement for the frame mounted differential rear insulator.

2. Using the Differential Bushing Remover/Installer, install the differential front lower insulator.





3. Install the rear axle assembly. For additional information, refer to Axle Assembly Axle Assembly.
