Cylinder Head Assembly

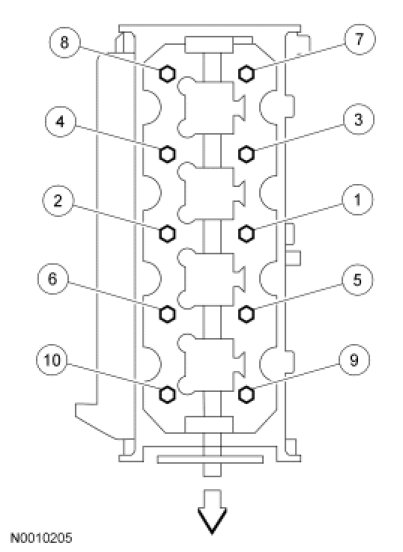

Cylinder HeadTighten the 10 new LH cylinder head bolts in 3 stages, in the sequence shown.
Stage 1: Tighten to 40 Nm (30 lb-ft).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees.

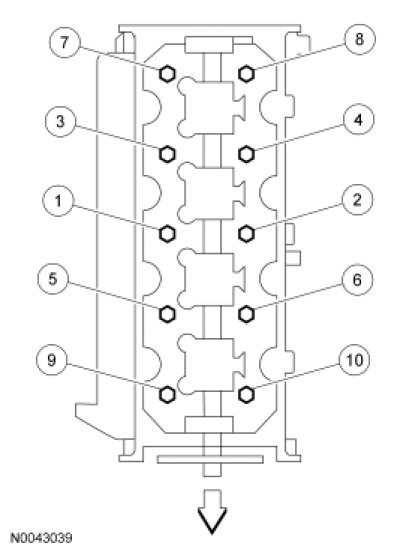

Tighten the 10 new RH cylinder head bolts in 3 stages, in the sequence shown.
Stage 1: Tighten to 40 Nm (30 lb-ft).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees.
Bolt Re-usability
NOTE: The cylinder head bolts must be discarded and new bolts installed. They are a tighten-to-yield design and cannot be reused.
Surface Variation -- Head-to-Block, Head-to-Manifolds and Surface Variation -- Warpage
a Time required for the plunger to leak down 1.6 mm of travel with 222 N force and leak-down fluid in the lash adjuster.
b The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.
Camshaft Bearing Cap
Install the camshaft and the camshaft bearing caps in their original locations.
NOTE: LH shown, RH similar.
Tighten the 13 bolts in the sequence shown.
Tighten to 10 Nm (89 lb-in).
Intake Manifold Specifications
Exhaust Manifold Specifications
Camshaft Gear/Sprocket Torque Specifications
