DVD Player: Service and Repair

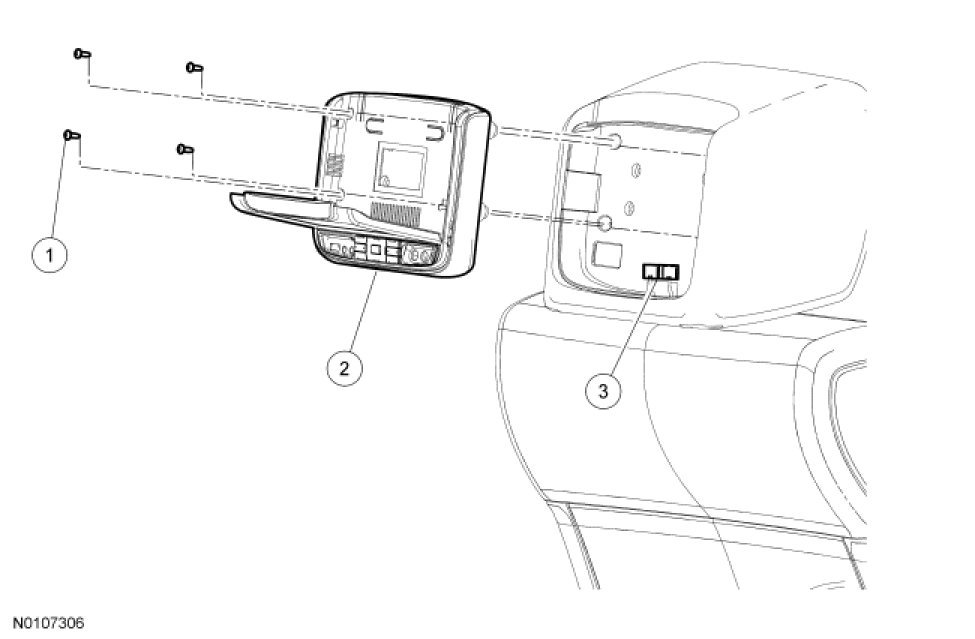

Digital Versatile Disc (DVD) Player

NOTE: LH side shown, RH side similar.











Removal and Installation

1. Tilt the DVD player back slightly, release the locking tab using a small flat-bladed screwdriver, and tilt the screen completely down.





2. Remove the 4 screws and the DVD player.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
- Carry out the Occupant Classification Sensor (OCS) System Reset in Restraint Systems. Programming and Relearning
