Auxiliary Input / Output Jack: Service and Repair

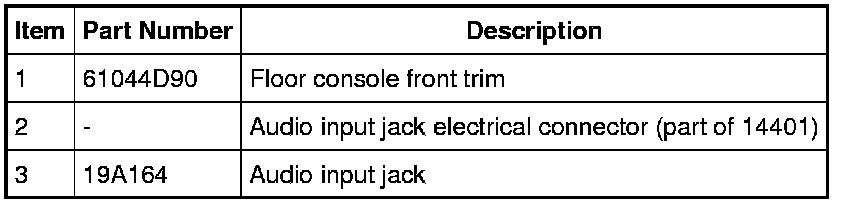

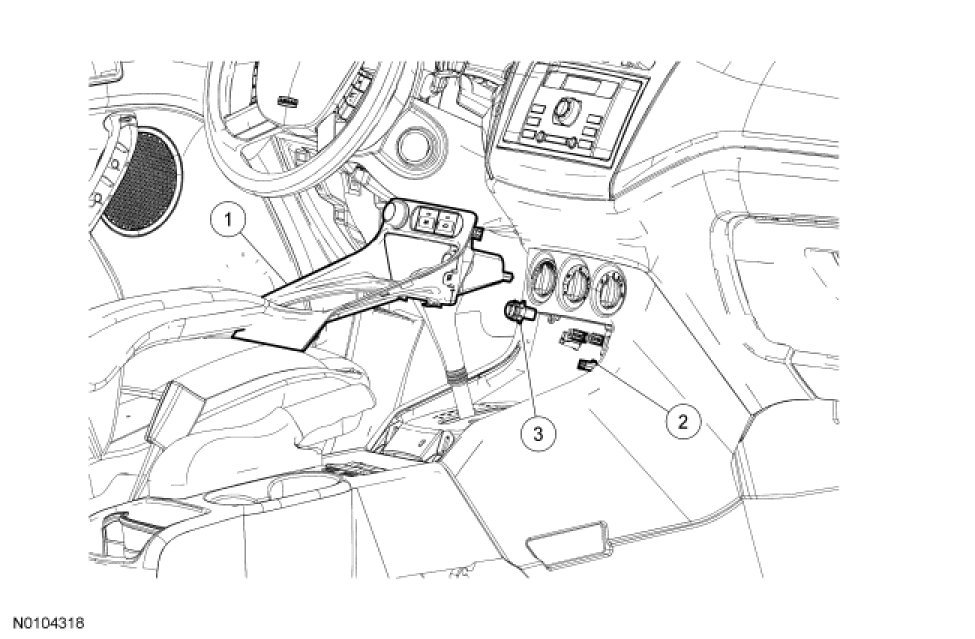

Audio Input JackRemoval and Installation 1.
Using a suitable tool (such as a trim removal tool), remove the floor console front trim by releasing the clips.
-
Disconnect the electrical connector.
2.

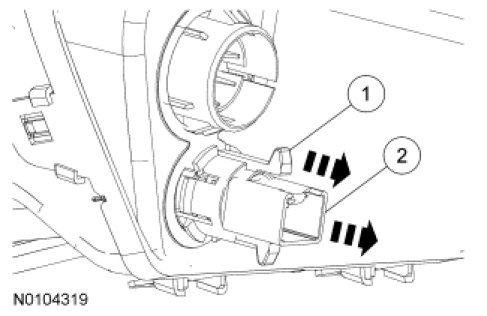

Remove the audio input jack.
1.
Slide the retainer backward.
2.
Pull the audio input jack from the floor console front trim.
3.
To install, reverse the removal procedure.
