Front Bumper: Service and Repair

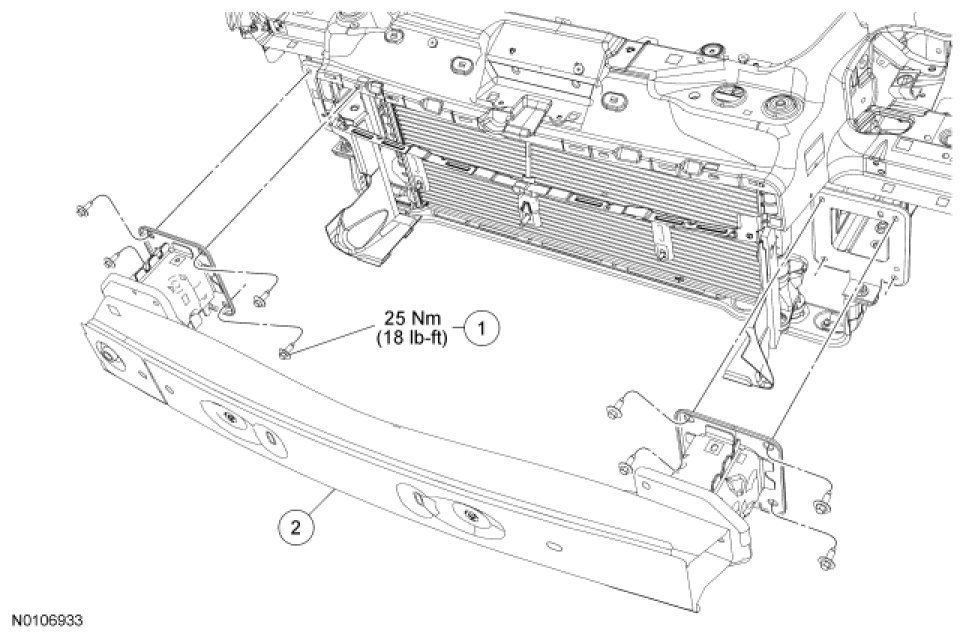

Bumper - FrontRemoval and Installation 1.
Remove the front
bumper cover. For additional information, refer to Bumper Cover - Front
Service and Repair.
2.

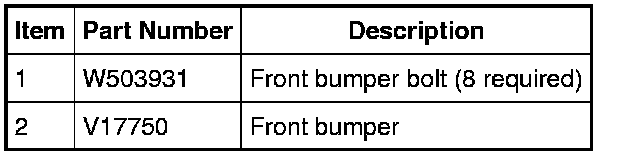

Remove the front
bumper bolts.
-
To install, tighten to 25 Nm (18 lb-ft).
3.
Pull outward to remove the front
bumper.
4.
To install, reverse the removal procedure.
