Radiator Grille




Radiator Grille

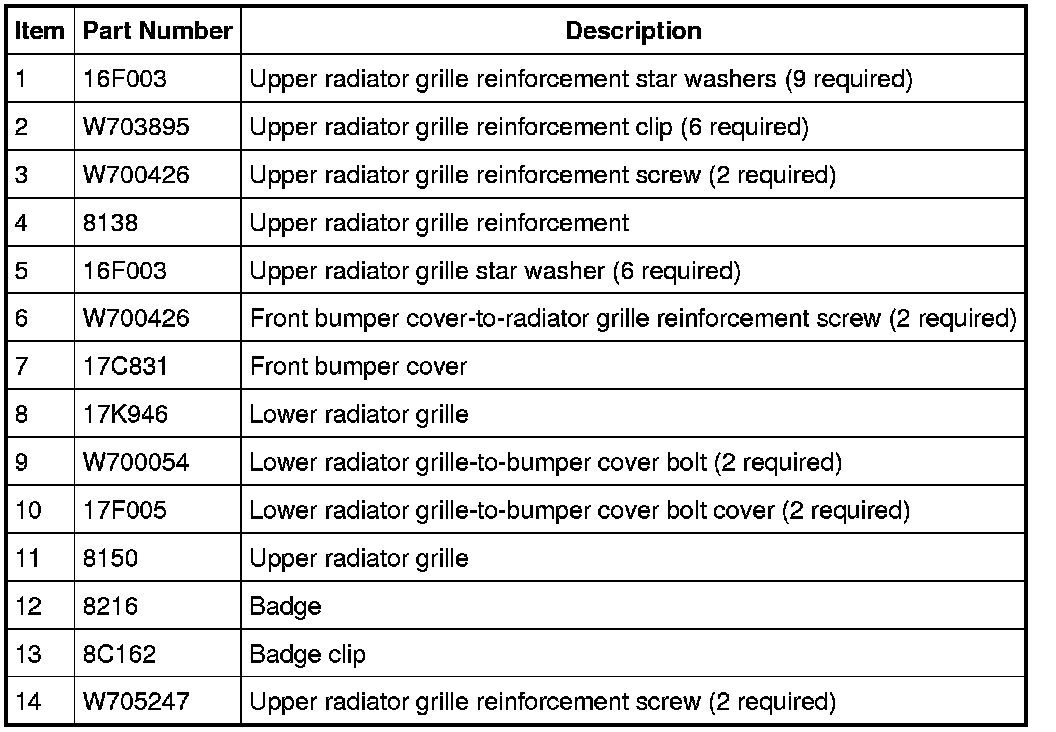

Removal and Installation

Upper radiator grille

1. Remove the front bumper cover. For additional information, refer to Bumper.

2. Remove the 9 upper radiator grille reinforcement star washers.

3. Remove the 4 upper radiator grille reinforcement screws.

4. Remove the upper radiator grille reinforcement.

5. Remove the 6 upper radiator grille star washers.

6. Press downward on the upper radiator grille lower clips to release the upper radiator grille from the front bumper cover.

Lower radiator grille

7. Press outward on the lower radiator grille tabs to release the lower radiator grille from the bumper cover.

All grilles

8. To install, reverse the removal procedure.
