Console - Overhead




Console - Overhead

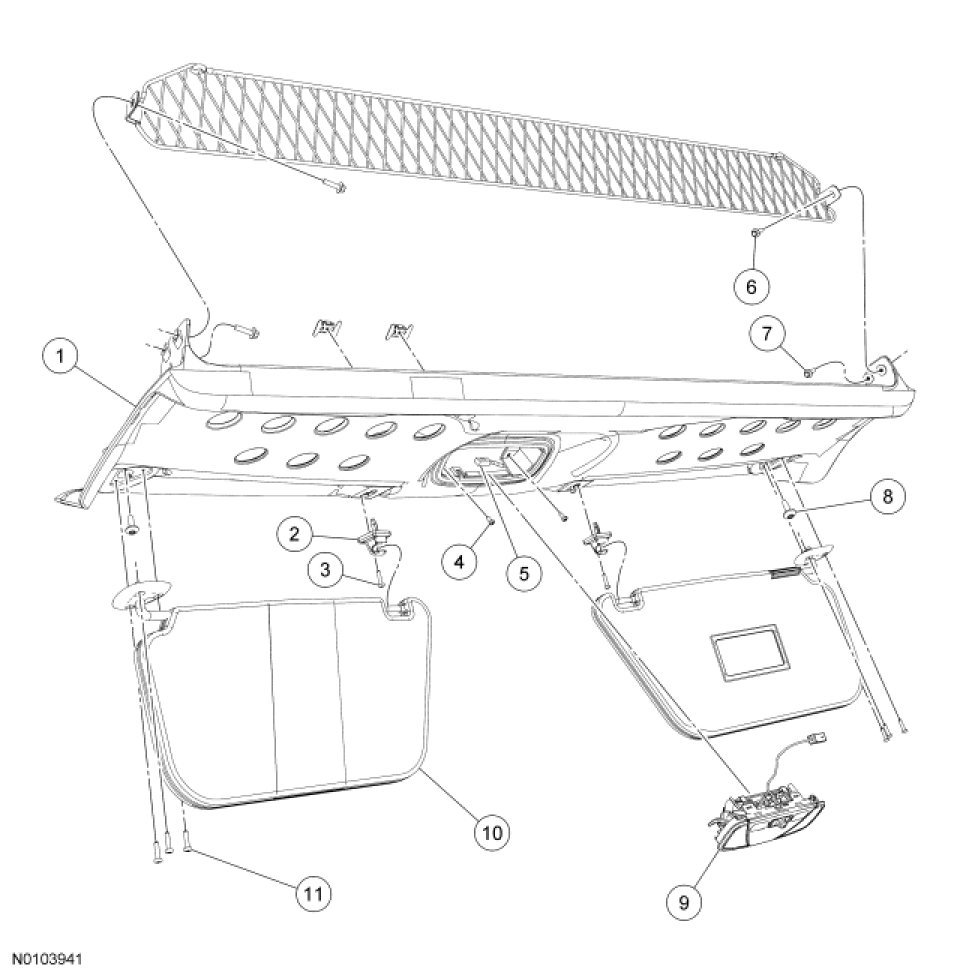

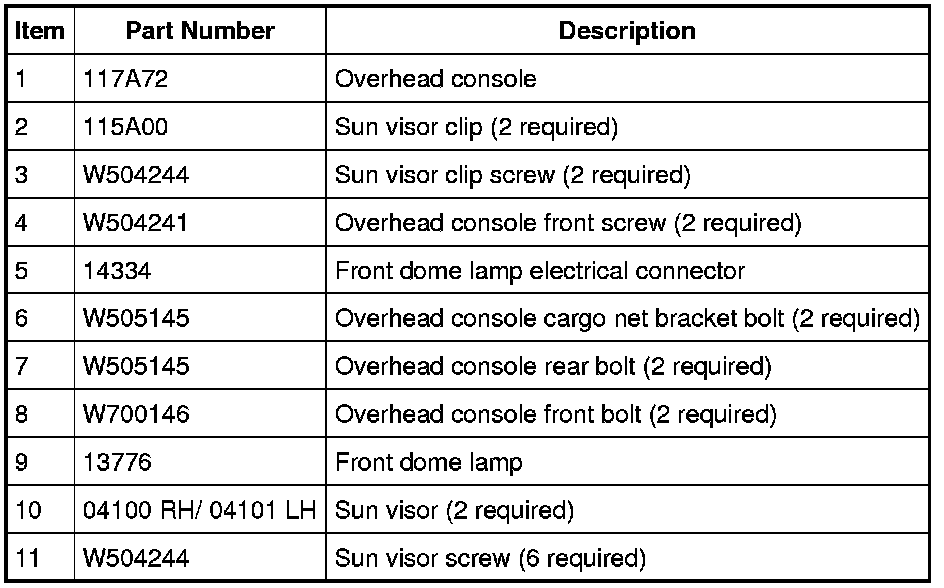

Removal and Installation

1. NOTICE: When prying on a component, a non-marring tool must be used or damage to the component may occur.

Remove the front dome lamp in the following sequence.

1. With a non-marring tool, pry the front dome lamp downward to release from the headliner.

2. Disconnect the electrical connector.

2. Remove the LH and RH sun visors and the sun visor clips.

3. Remove the overhead console screws and bolts in the following sequence.

1. Remove the 2 front screws through the front dome lamp opening.

2. Remove the 2 front bolts through the sun visor mounting openings.

3. Remove the 2 overhead console cargo net bracket bolts.

4. NOTICE: To avoid damaging the overhead console, an assistant is required to support the instrument panel when carrying out this step.

Remove the 2 rear bolts and the overhead console.

4. To install, reverse the removal procedure.
- To install, make sure to align the guide pin to the adjacent hole.
