Exterior Mirror Glass

Exterior Mirror Glass

Removal

1. Position the exterior mirror glass to the full upward and inboard position and insert a thin, flat-blade screwdriver.





2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

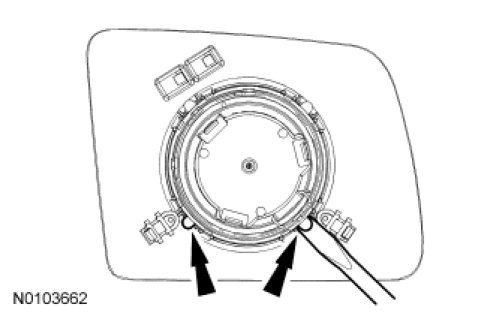

NOTE: LH mirror and motor shown removed from the housing and from the back to show location of clips and placement of screwdriver.

Using the thin, flat-blade screwdriver, release the tabs starting at the lower outboard side of the exterior mirror glass and continuing to the lower inboard side.
Remove the exterior mirror glass.





3. Disconnect the electrical connectors.

Installation

1. Connect the electrical connectors.

2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

NOTE: An audible click will be heard during installation.

Install the exterior mirror glass by pressing firmly in the center of the exterior glass until it snaps onto the exterior mirror motor.
