Acceleration/Deceleration Sensor: Service and Repair




Stability Control Sensor Cluster













Removal and Installation

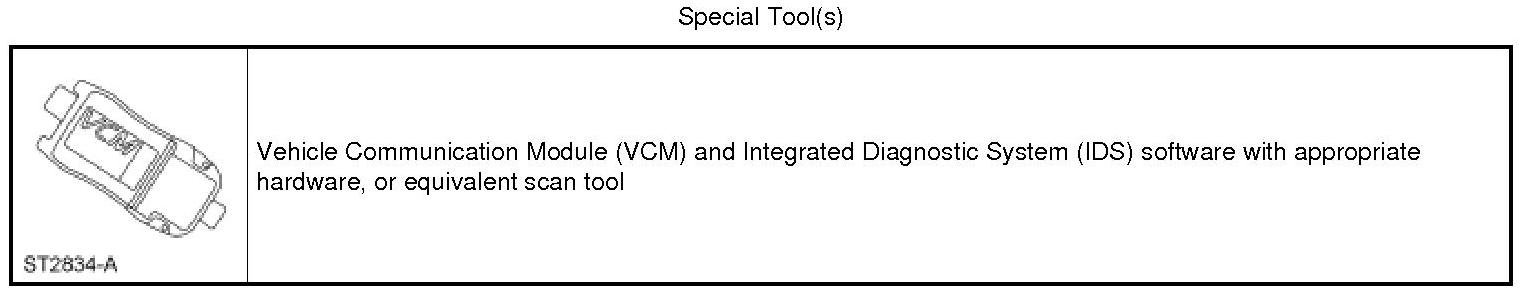

NOTE: When installing a new stability control sensor cluster, the IVD Initialization sequence must be carried out. Follow the scan tool directions for the calibration procedures.

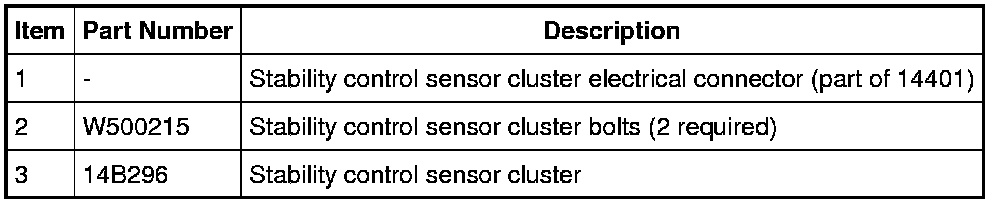

1. Remove the floor console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Disconnect the stability control sensor cluster electrical connector.

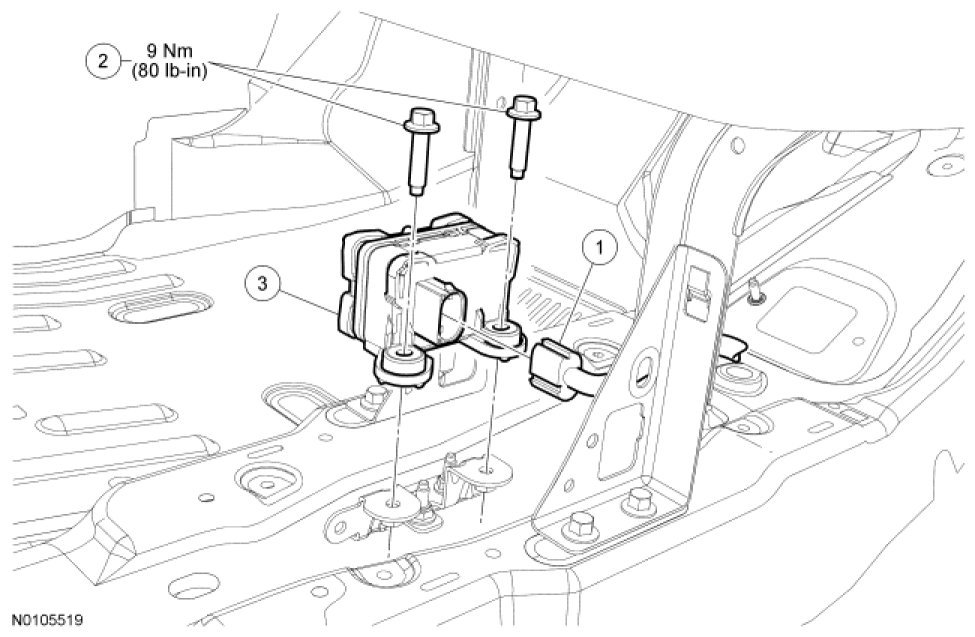

3. Remove the 2 stability control sensor cluster bracket bolts and the stability control sensor cluster.
- To install, tighten to 9 Nm (80 lb-in).

4. To install, reverse the removal procedure.
- Carry out the IVD Initialization sequence for all 4 stability control sensors (roll rate, yaw rate, lateral acceleration sensor, longitudinal acceleration sensor). Follow the scan tool directions.
