Evaporator Outlet Line




Evaporator Outlet Line

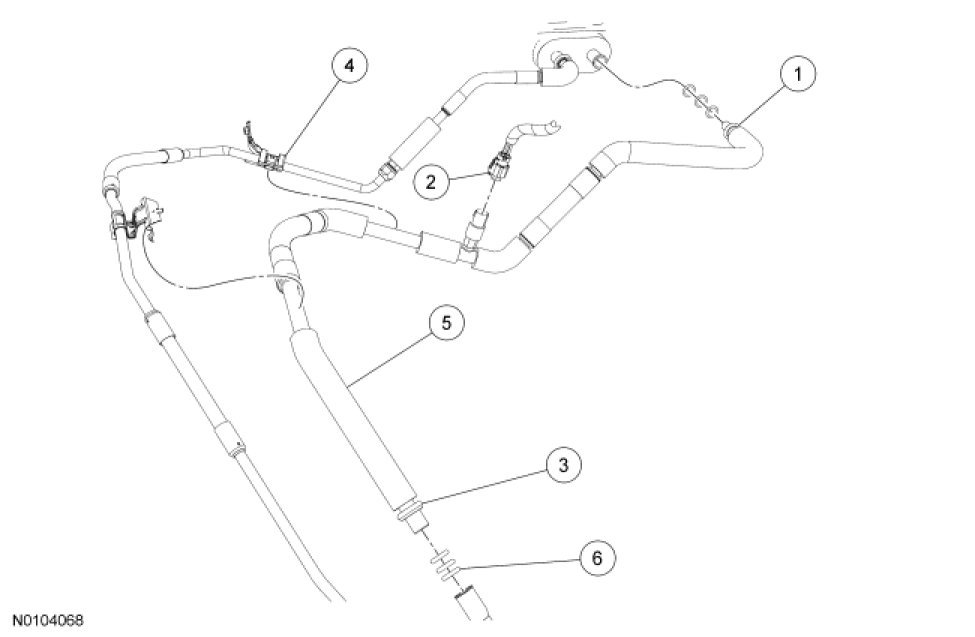

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Recover the refrigerant.

3. Disconnect the evaporator outlet fitting.
- Discard the O-ring seals.

4. Disconnect the A/C cycling switch electrical connector.

5. Remove the RH fender splash shield.

6. Disconnect the suction accumulator inlet fitting.
- Discard the O-ring seals.

7. Detach the evaporator outlet line from the 2 line routing clips.

8. Remove the evaporator outlet line.

9. To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.

- Add the correct amount of clean PAG oil to the refrigerant system.

10. Evacuate, leak test and charge the refrigerant system.
