Brake Light Switch: Service and Repair




Stoplamp Switch









Removal and Installation

NOTICE: Do not press the brake pedal when installing or removing the stoplamp switch or damage to the stoplamp switch may occur.

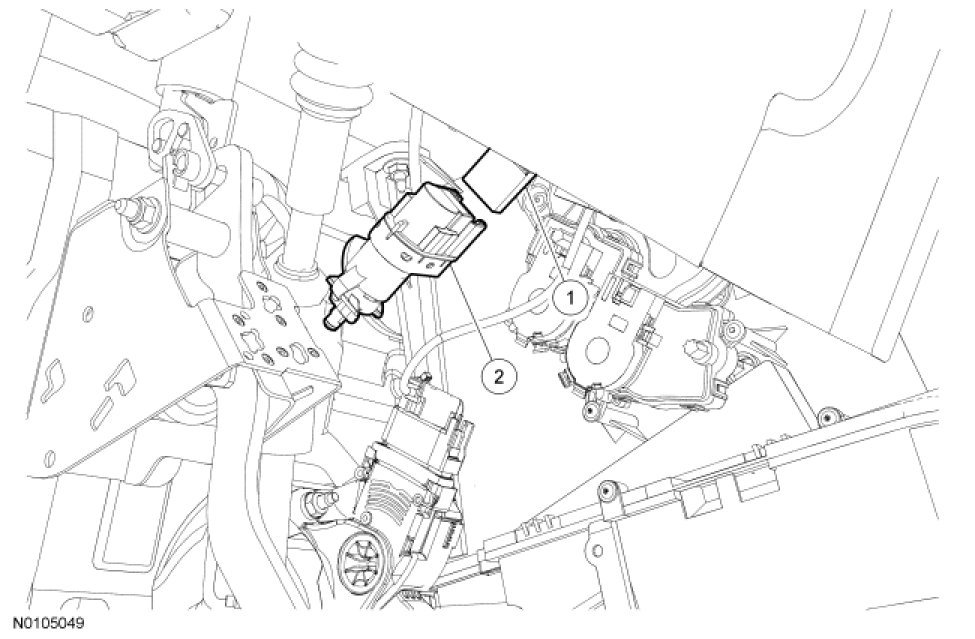

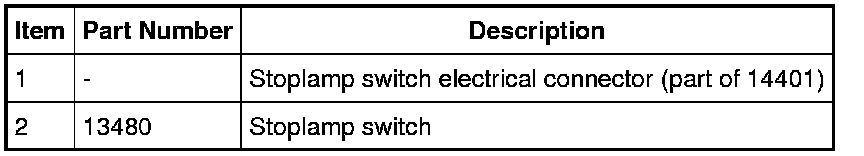

1. Disconnect the stoplamp switch electrical connector.

2. Rotate the stoplamp switch clockwise 45 degrees and remove the stoplamp switch.

3. NOTE: The stoplamp switch is self-adjusting. Do not press the brake pedal during installation. Initial installation of the stoplamp switch allows for one adjustment only. If additional adjustments are necessary, install a new stoplamp switch.

To install, reverse the removal procedure.
