Center Mounted Brake Lamp: Service and Repair

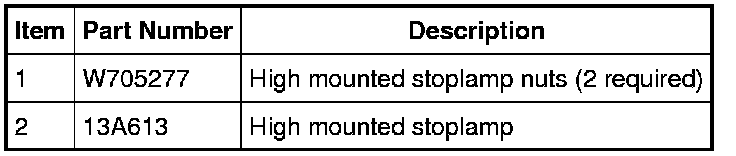

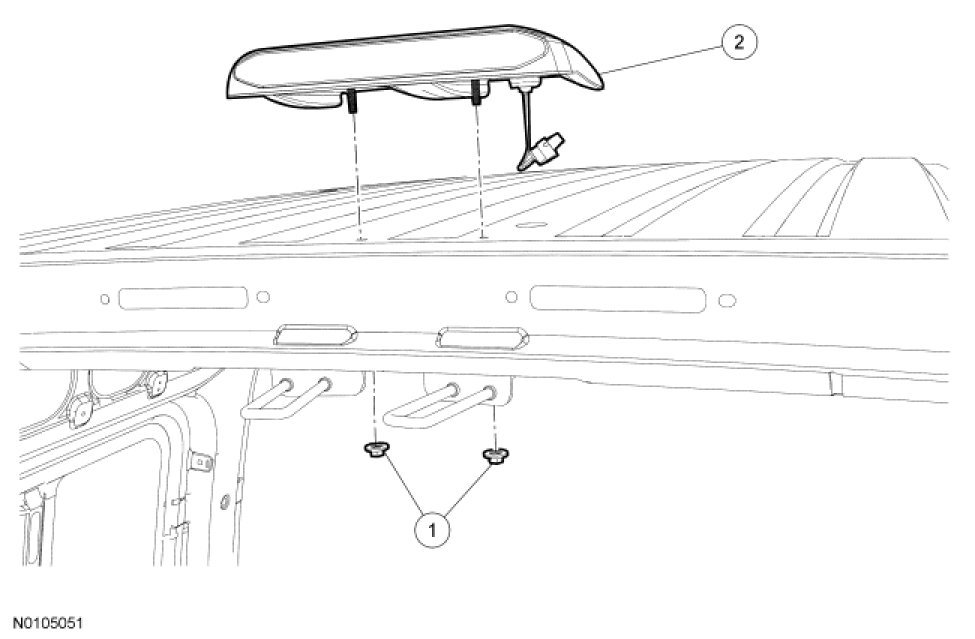

High Mounted StoplampRemoval and Installation 1.
If equipped with a rear headliner, remove the pin-type retainers and lower the headliner to access the high mounted stoplamp nuts and electrical connector.
2.
Disconnect the high mounted stoplamp electrical connector.
3.
Remove the 2 nuts and the high mounted stoplamp.
4.
To install, reverse the removal procedure.
