Dimmer Switch: Service and Repair

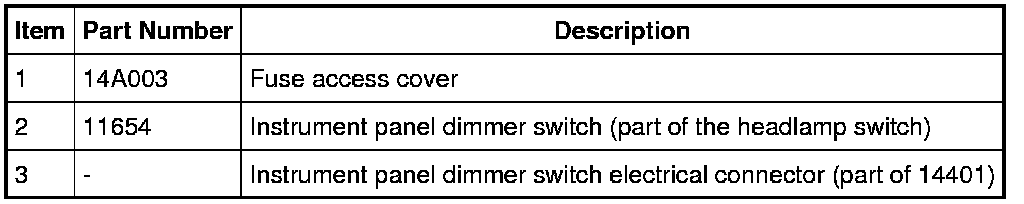

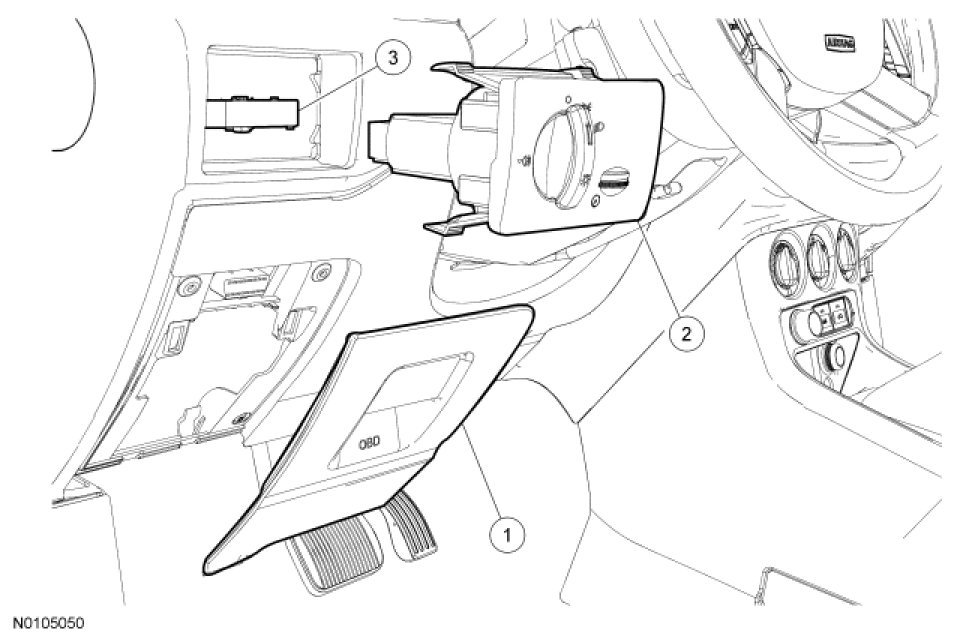

Instrument Panel Dimmer SwitchRemoval and Installation 1.
Remove the fuse access cover.
2.
NOTE: The instrument panel dimmer switch is removed by reaching through the fuse cover opening and pushing it from behind.
Release the clips and remove the instrument panel dimmer switch.
-
Disconnect the electrical connector.
3.
To install, reverse the removal procedure.
