Horn: Service and Repair
HornRemoval and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.
2.

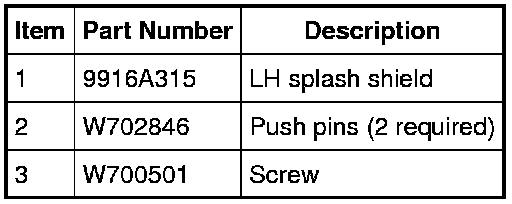

Remove the 2 push pins, the screw and the LH splash shield.
3.

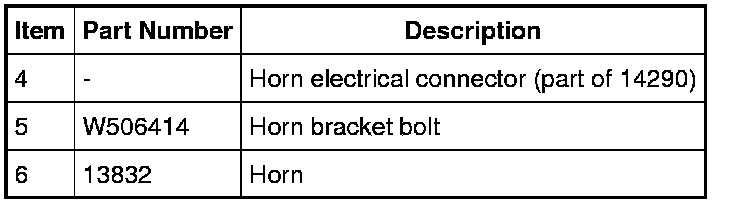

Disconnect the electrical connector.
4.

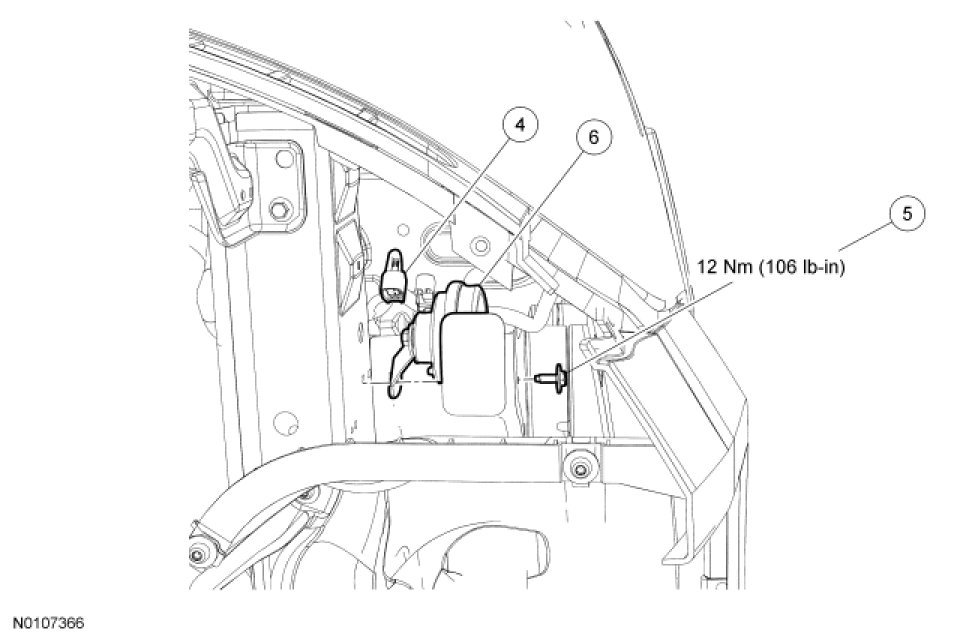

Remove the
horn bracket bolt and the horn.
-
To install, tighten to 12 Nm (106 lb-in).
5.
To install, reverse the removal procedure.
