License Plate Lamp: Service and Repair

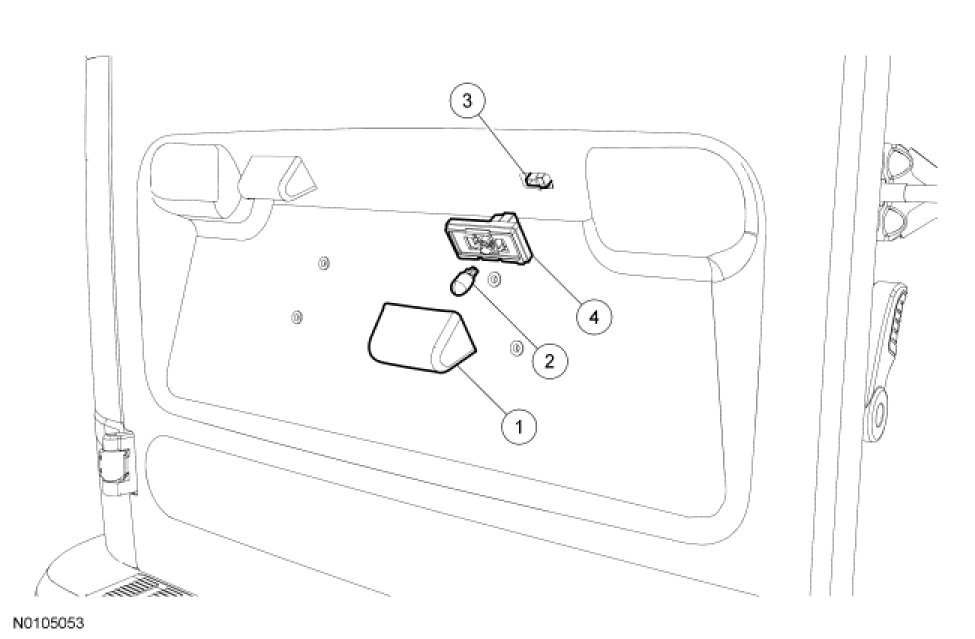

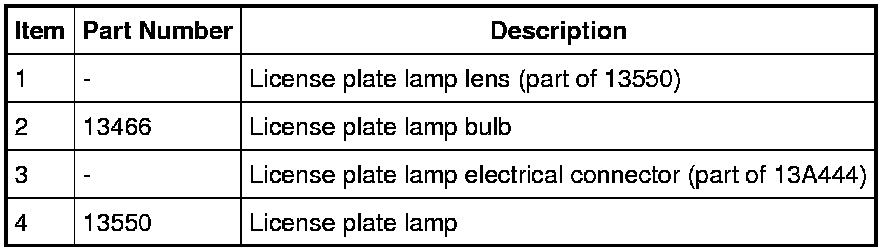

License Plate LampRemoval and InstallationNOTE: The
license plate lamp lens and bulb can be removed without removing the assembly.
1.

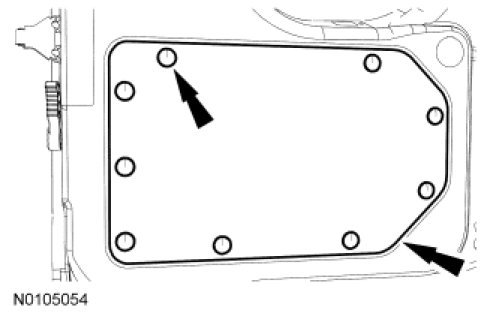

Remove the pin-type retainers and the rear door trim panel.
2.
Disconnect the
license plate lamp electrical connector.
3.
Release the tabs and remove the
license plate lamp from the rear door.
4.
To install, reverse the removal procedure.
