Inertia Fuel Shutoff Switch: Service and Repair

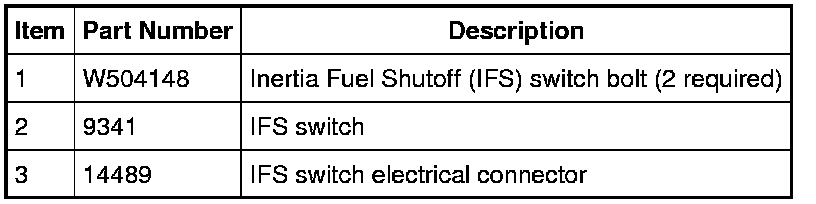

Inertia Fuel Shutoff (IFS) Switch









Removal and Installation

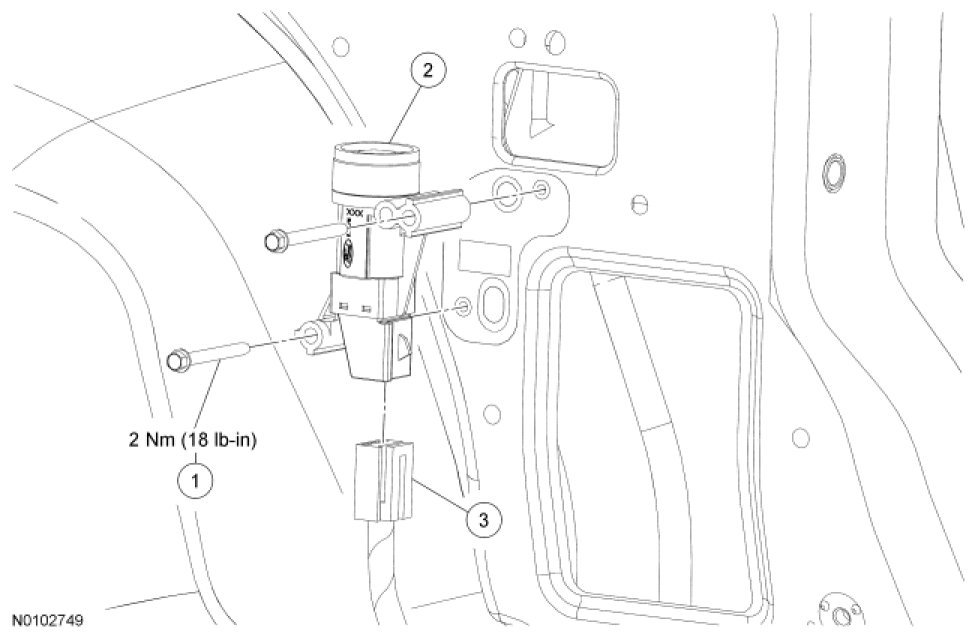

1. Remove the RF lower cowl trim panel.

2. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the switch will occur.

Remove the 2 bolts and the IFS switch.

- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
- If necessary, reset the IFS switch after the installation has been completed.
