Throttle Body: Service and Repair

Throttle Body

Removal and Installation

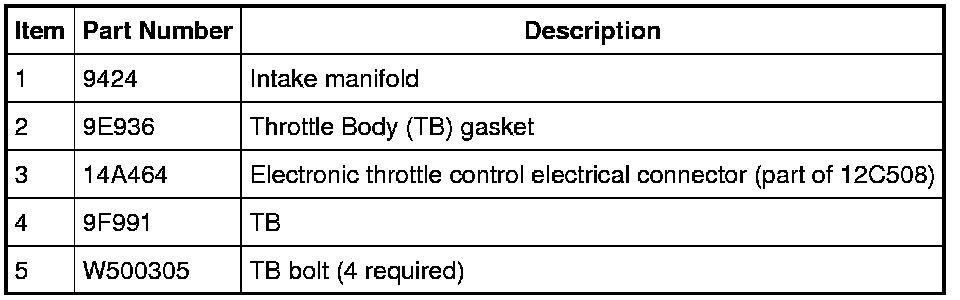

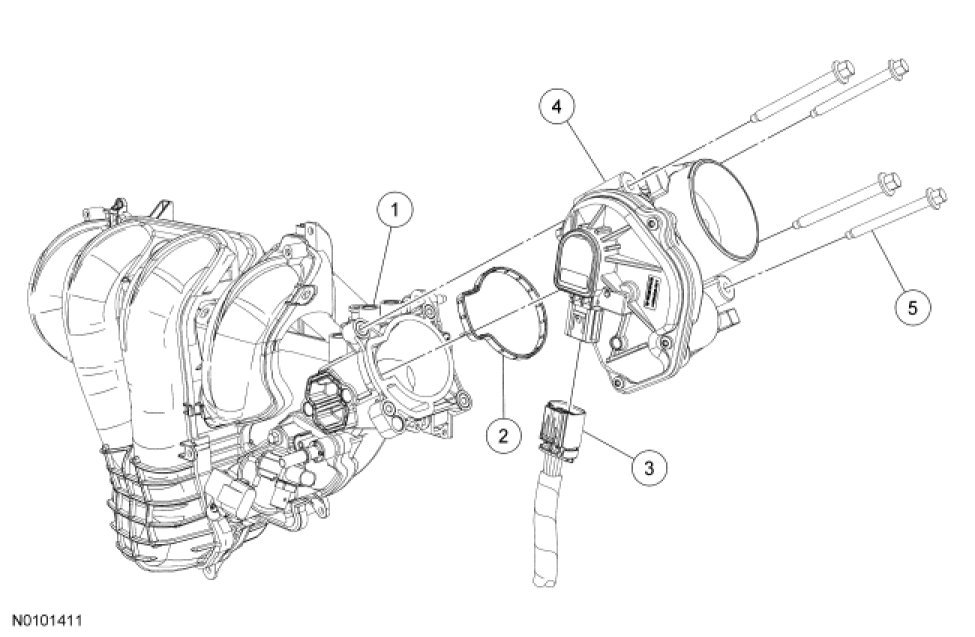

1. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

2. Disconnect the electronic throttle control electrical connector.

3. Remove the 4 bolts and the Throttle Body (TB).
- Inspect the TB gasket and install new as necessary.

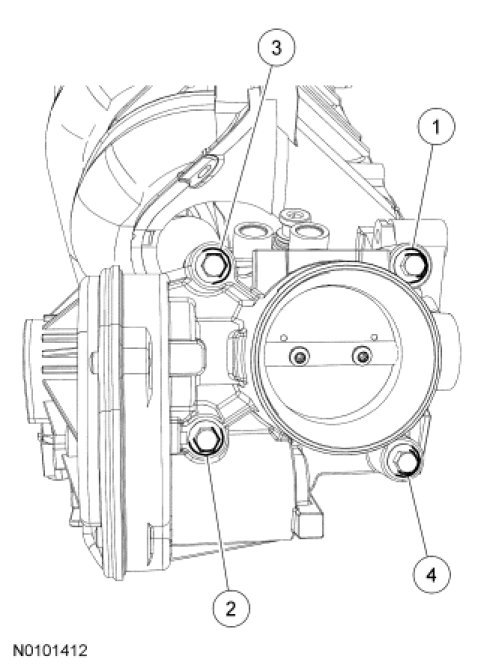

- To install, tighten to 10 Nm (89 lb-in) in the sequence shown.

4. To install, reverse the removal procedure.
