Seat Position Sensor: Service and Repair

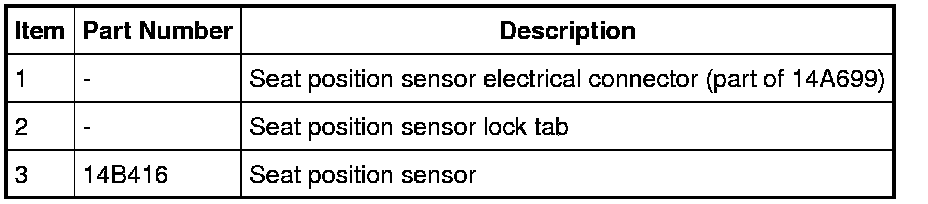

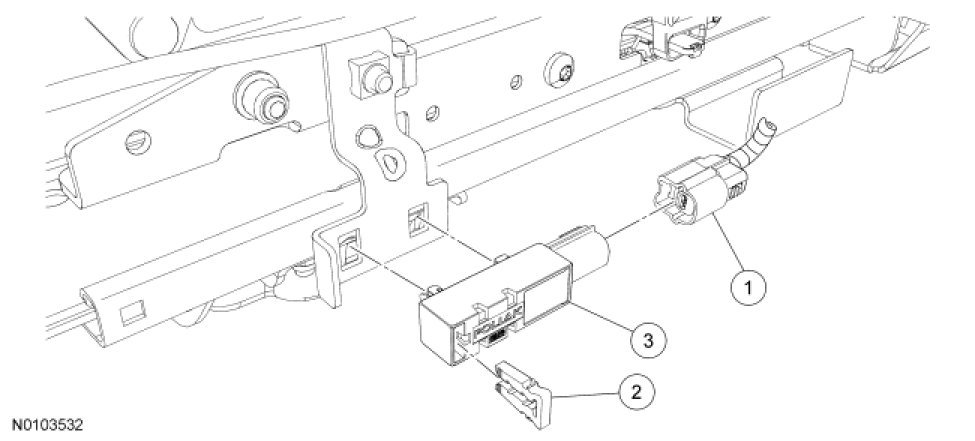

Seat Position Sensor 1.
Remove the driver seat. For additional information, refer to Seats.
2.
Disconnect the
seat position sensor electrical connector.
3.
Compress the tab and remove the
seat position sensor from the seat bracket slots.
4.
To install, reverse the removal procedure.
