Ignition Switch: Service and Repair




Ignition Switch









Removal and Installation

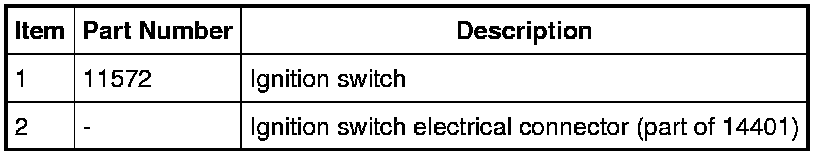

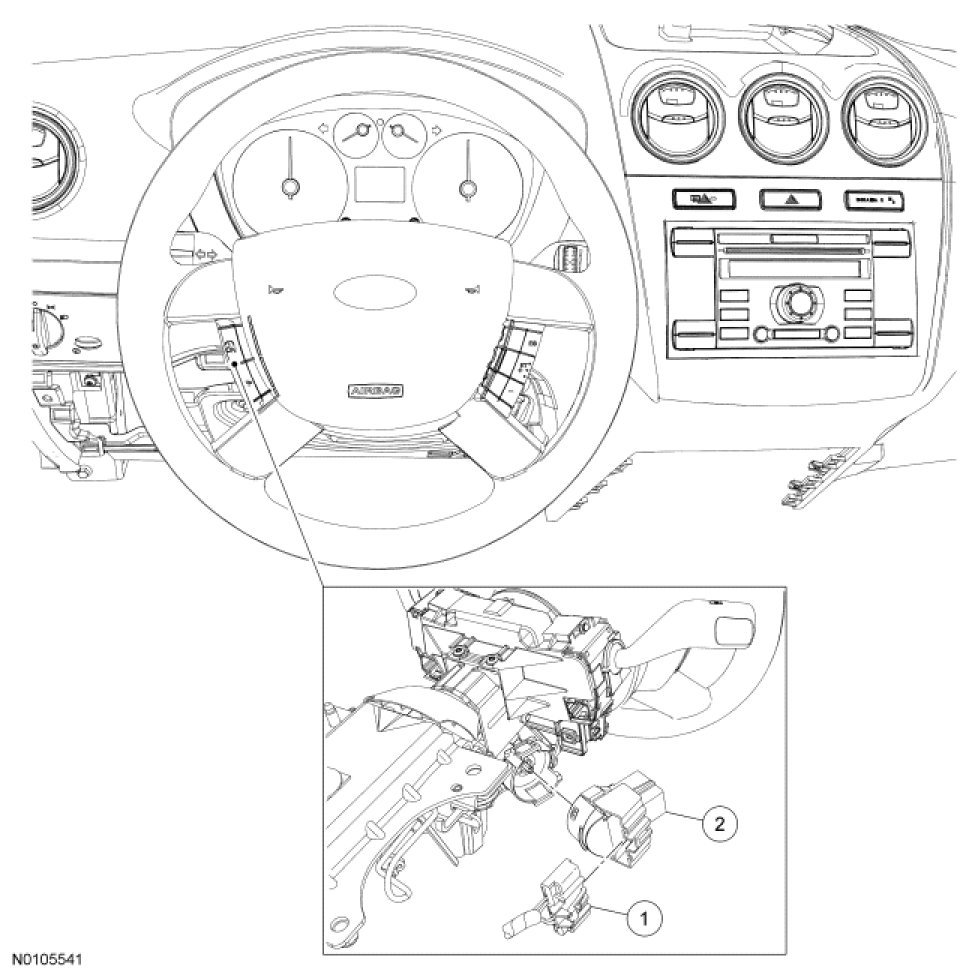

1. Remove the steering column opening trim panel. For additional information, refer to the Instrument Panel - Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Remove the upper and lower steering column shrouds. For additional information, refer to Steering Column.

3. Disconnect the ignition switch electrical connector.

4. Release the 2 locking tabs and remove the ignition switch.





5. To install, reverse the removal procedure.
