Fluid Pan: Service and Repair

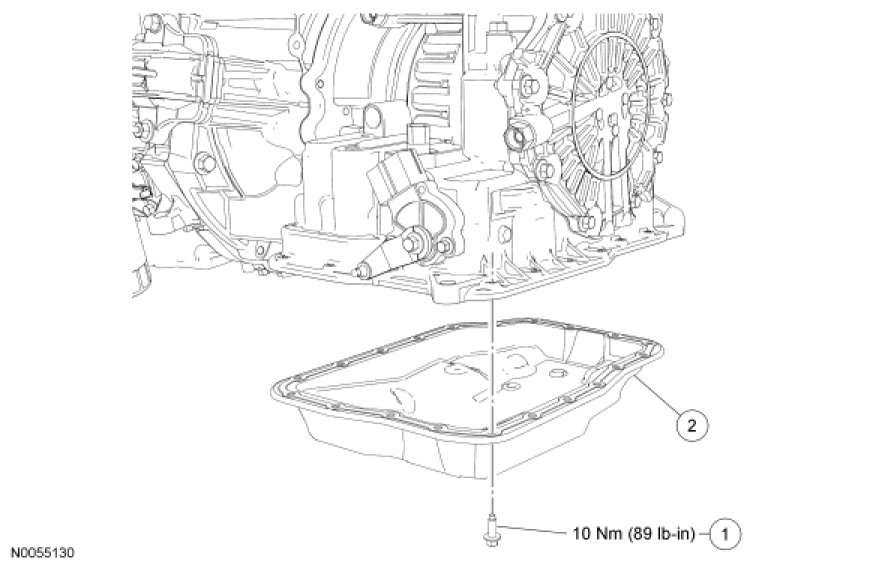

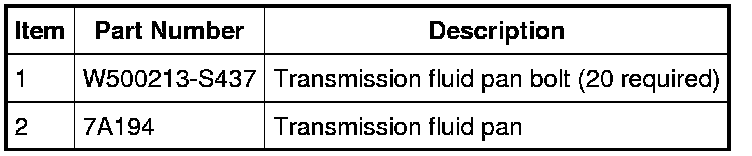

Transmission Fluid Pan

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. NOTE: The transmission fluid pan is filled with transmission fluid and cannot be drained before removing.

Remove the transmission fluid pan.

- Remove the bolts.

- Using a suitable tool, separate the bead of sealer.

3. Clean the silicone from the transmission fluid pan and transaxle case surfaces thoroughly with metal surface prep.

Installation

1. NOTE: Do not use more than the specified amount of sealer on the pan or internal transaxle damage could occur.

Apply a bead 1.5 mm (0.06 in) thick of sealer to the transmission fluid pan.

2. Install the transmission fluid pan.
- Tighten to 10 Nm (89 lb-in).

3. Lower the vehicle.

4. Fill the transaxle with clean transmission fluid.
