Transaxle Support Insulator

Transaxle Support Insulator





Transaxle Support Insulator









Removal

1. Remove the battery and battery tray. For additional information, refer to Battery.

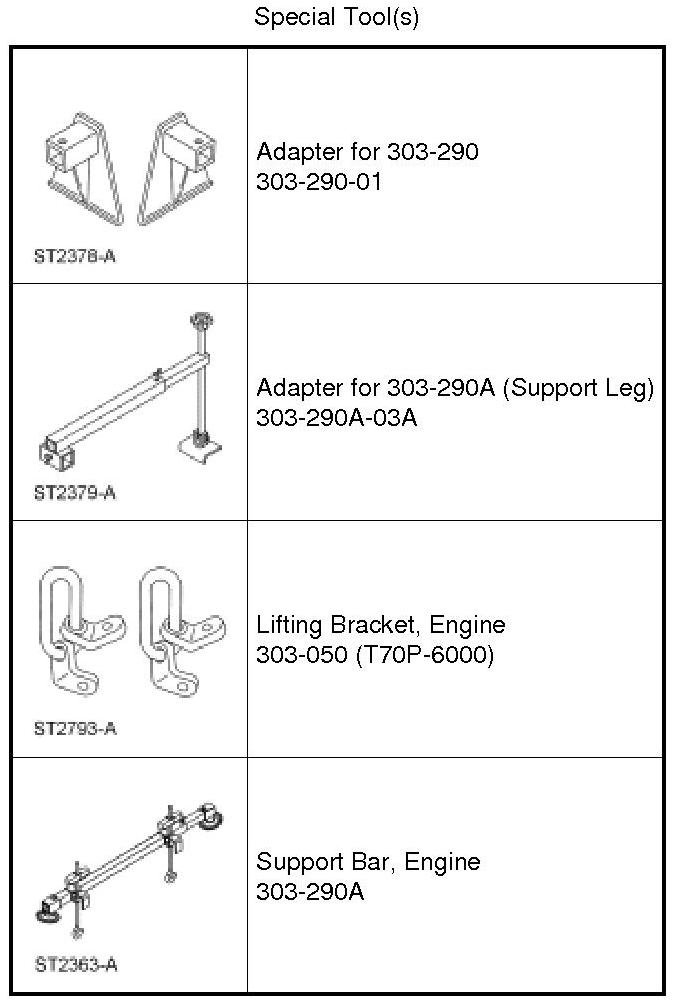

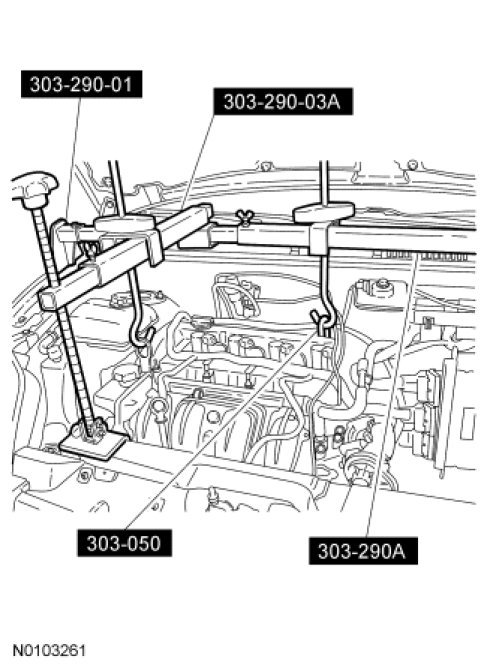

2. Install the Engine Support Bar, Engine Lifting Bracket and Adapters and support the engine.

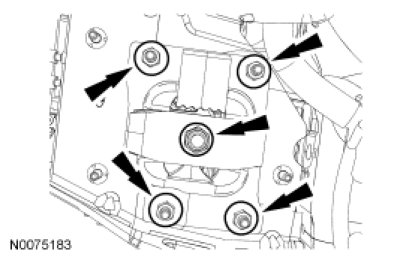

3. Remove the transaxle support insulator nuts and remove the transaxle support insulator.





Installation

1. Install the transaxle support insulator nuts.

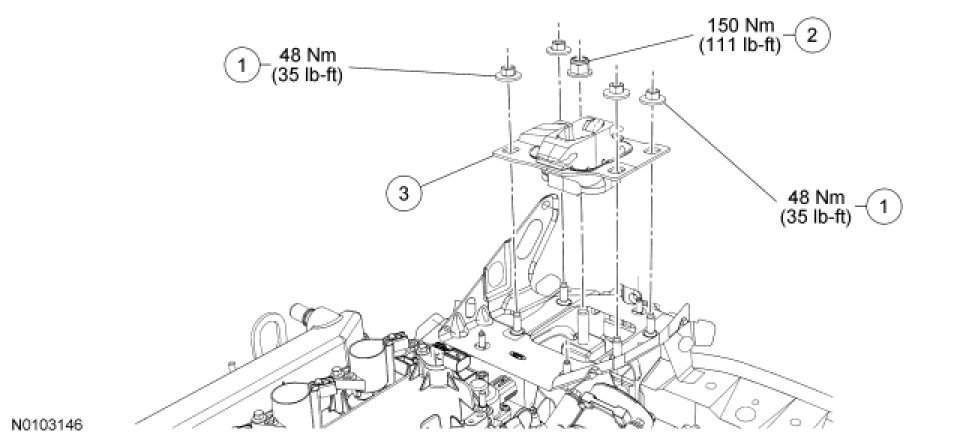

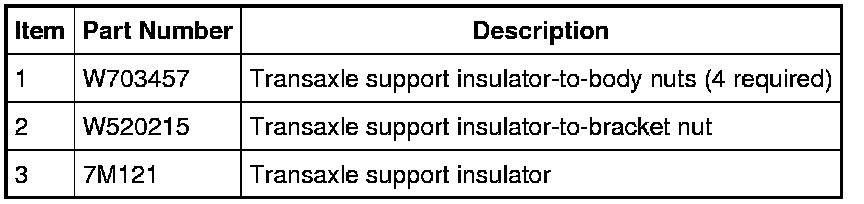

- Install the 4 transaxle support insulator-to-body nuts.
- Tighten to 48 Nm (35 lb-ft).

- Install the transaxle support insulator-to-bracket nut.
- Tighten to 150 Nm (111 lb-ft).





2. Remove the Engine Support Bar, Engine Lifting Bracket and Adapters and support the engine.





3. Install the battery tray and battery. For additional information, refer to Battery.
