Front Suspension

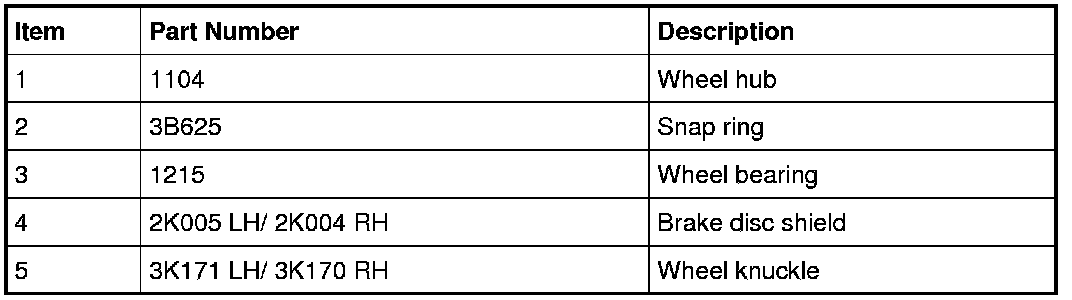

Wheel Bearing and Wheel Hub













Removal

NOTE: If removing the wheel hub, the wheel bearing must be replaced.

1. Remove the wheel knuckle. For additional information, refer to Wheel Knuckle Service and Repair.

2. Using the Step Plate and a suitable press, remove the wheel hub from the wheel bearing.





3. NOTE: This step may not be necessary if the inner wheel bearing race remains in the wheel knuckle after removing the wheel hub.
Using the Pinion Bearing Cone Remover and a suitable press, remove the inner wheel bearing race from the wheel hub.






4. Remove the snap ring.

5. Using the Wheel Hub Cup Remover/Installer and a suitable press, remove the outer wheel bearing race from the wheel knuckle.





Installation

1. Using the Wheel Hub Bearing Cup Installer and a suitable press, install the wheel bearing into the wheel knuckle.





2. Install the snap ring.

3. Using the Wheel Hub Bearing Cup Installer, Step Plate and a suitable press, install the wheel hub into the wheel bearing.





4. Install the wheel knuckle. For additional information, refer to Wheel Knuckle Service and Repair.
