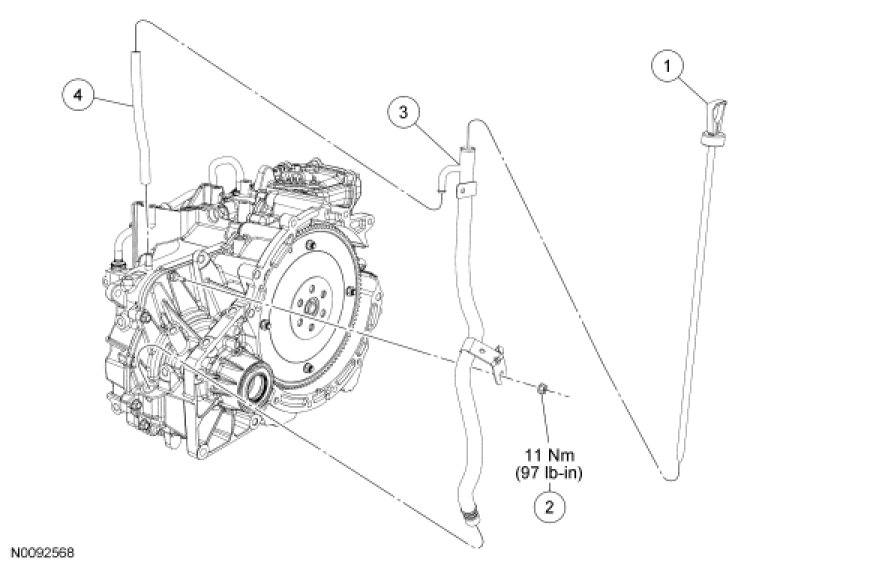

Transaxle Filler Tube

Transaxle Filler Tube

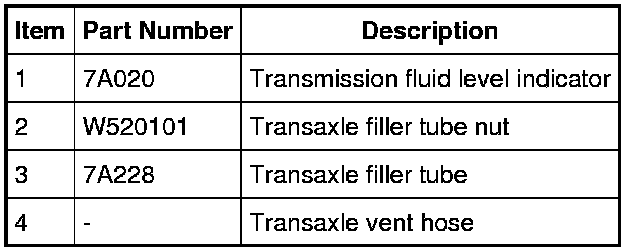

Removal

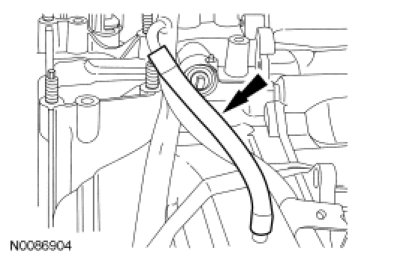

1. Remove the transaxle vent hose from the transaxle filler tube.

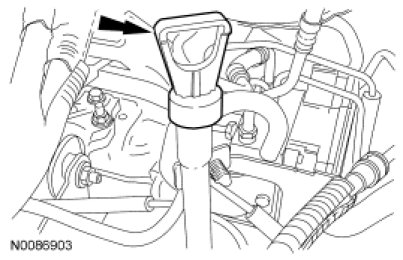

2. Remove the transmission fluid level indicator.

3. Remove the selector lever cable from the transaxle filler tube bracket.

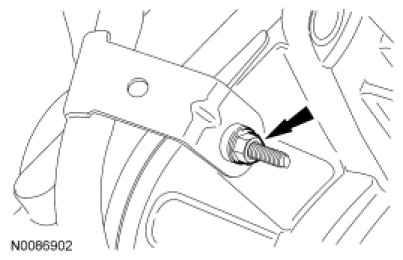

4. Remove the transaxle filler tube nut.
- To install, tighten to 11 Nm (97 lb-in).

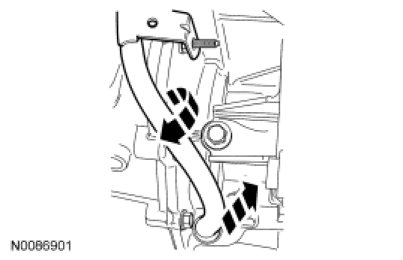

5. Pull and rotate the transaxle filler tube clockwise and remove the transaxle filler tube.

Installation

1. To install, reverse the removal procedure.
