Coolant Pump Belt




Coolant Pump Belt













Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the pin-type retainer, 5 bolts and the RH lower splash shield.

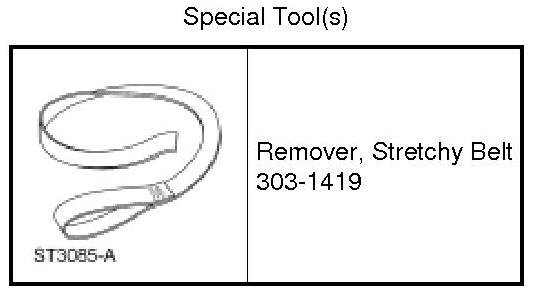

3. Position the Stretchy Belt Remover under the coolant pump belt as shown.





4. NOTE: Feed the Stretchy Belt Remover on to the camshaft coolant pump pulley approximately 90 degrees.

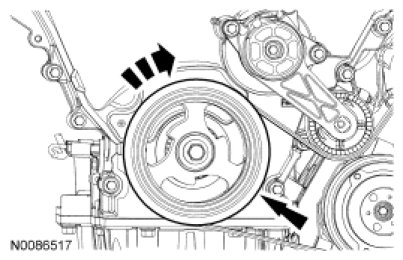

With the help of an assistant, turn the crankshaft clockwise and feed the Stretchy Belt Remover evenly on the camshaft coolant pump pulley as shown.





5. Remove the coolant pump belt.
- Fold the Stretchy Belt Remover over the top of the coolant pump belt.

- In one quick motion, pull the Stretchy Belt Remover up and toward the RH front of the vehicle removing the coolant pump belt.





Installation

1. Install the coolant pump belt on the coolant pump pulley and position it on the camshaft pulley.





2. NOTICE: Do not use any screwdrivers, pliers or other metal objects that could cause damage to the belt or camshaft pulley while installing the belt.

Rotate the crankshaft clockwise to seat the coolant pump belt on the camshaft pulley.

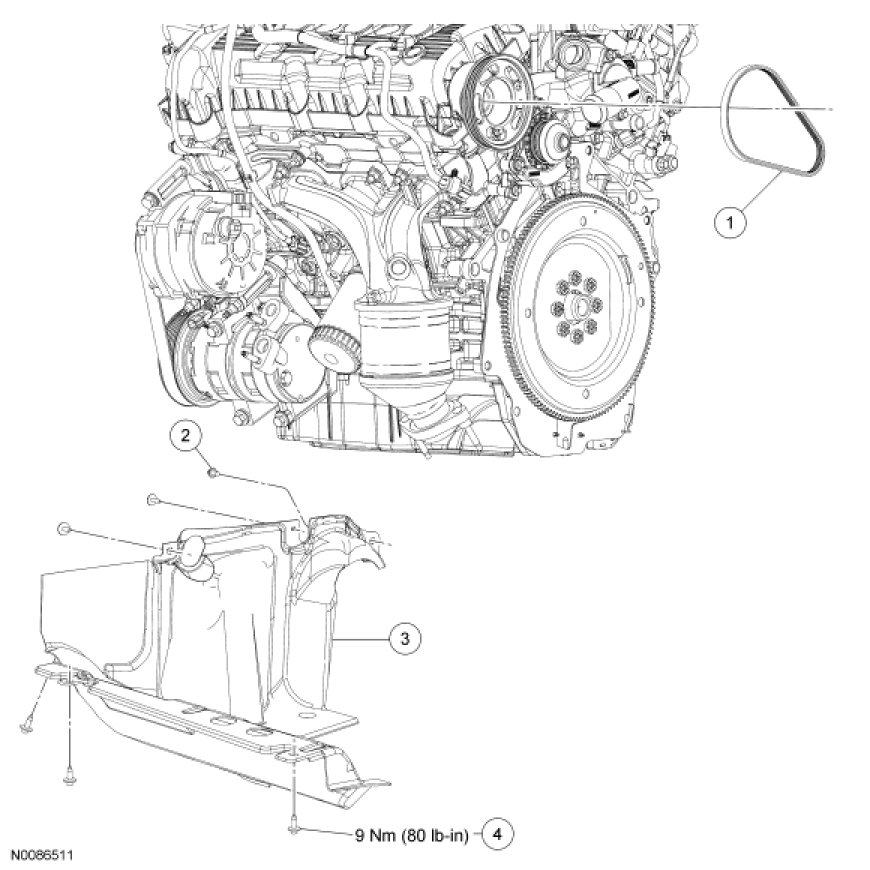

3. Install the RH lower splash shield, pin-type retainer and 5 bolts.
- Tighten to 9 Nm (80 lb-in).
