Floor Duct
Floor DuctRemoval and Installation 1.
Remove the
heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing
Heater Core And Evaporator Core Housing.
2.

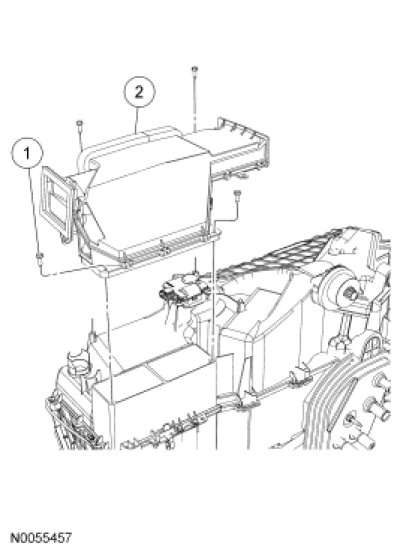

Remove the 4 floor duct screws.
3.
Remove the floor duct.
4.
To install, reverse the removal procedure.
