Rear Vision Camera: Service and Repair




Video Camera

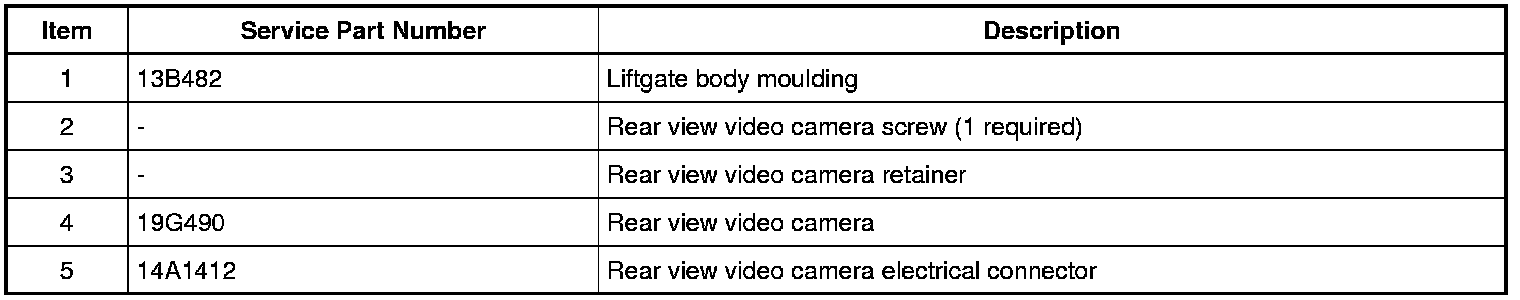

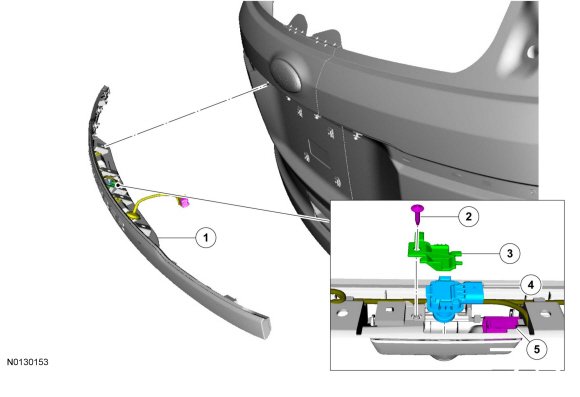

Exploded View










Removal

1. Remove the liftgate trim panel. REFER to Liftgate Trim Panel Service and Repair.

2. NOTE: LH (Left Hand) side shown, RH (Right Hand) side similar.

Open the rear liftgate and remove the LH (Left Hand) and RH (Right Hand) liftgate body moulding nuts.

- To install, tighten to 3 Nm (27 lb-in).





3. Remove the 4 liftgate body moulding bolts and remove the liftgate body moulding.

- Disconnect the electrical connector.

- To install, tighten to 3 Nm (27 lb-in).

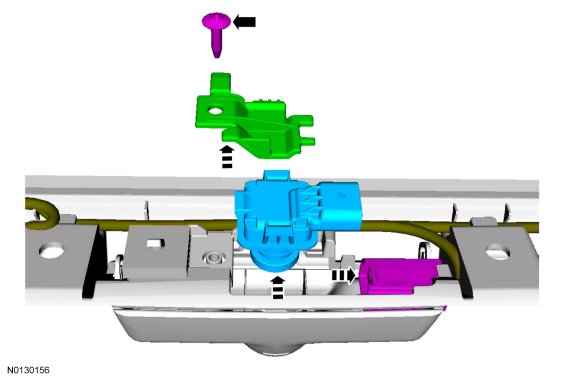

4. Remove the rear video camera screw and retainer, remove the rear video camera.

- Disconnect the electrical connector.






Installation

1. NOTE: The rear video camera guidelines will not display if the rear video camera is not configured.

Configure the rear video camera following the instructions on the scan tool.

2. To install, reverse the removal procedure.
