Console - Rear, Floor

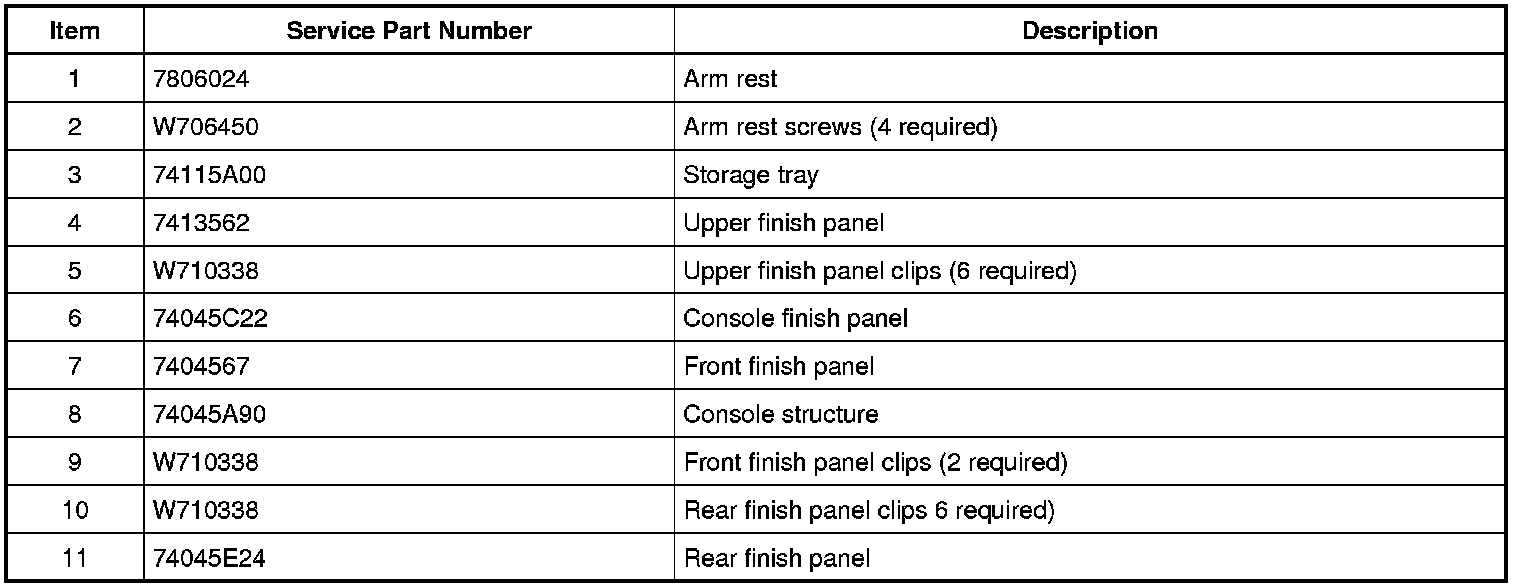

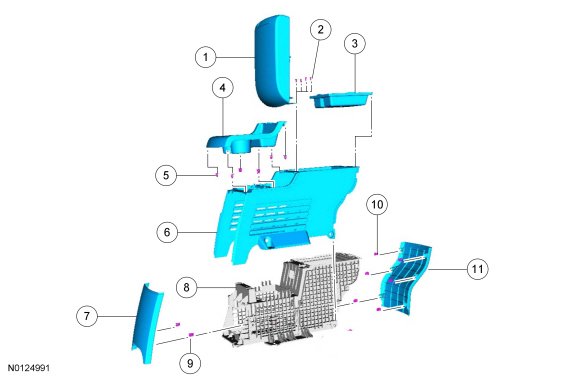

Console - Rear, FloorExploded ViewRear Console Finish Panels Rear Console FastenersRemoval 1.
Fold and tilt the second row passenger seats forward.
2.

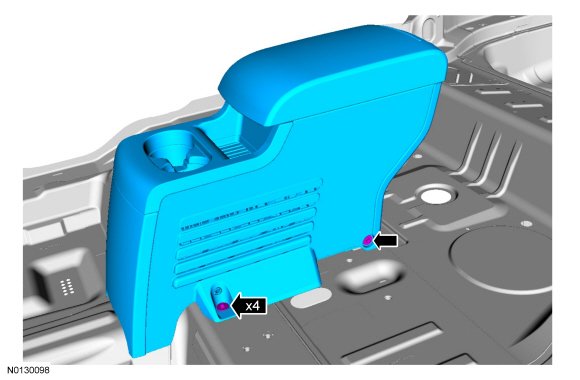

Remove the 4 rear floor console bolts.
-

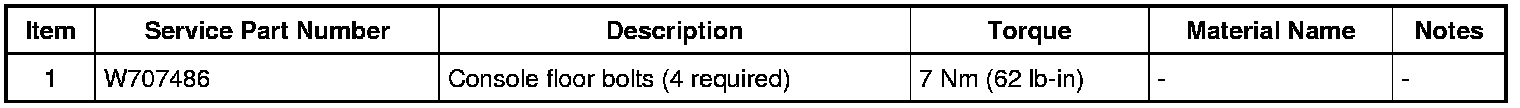

To install, tighten to 7 Nm (62 lb-in).
3.
Remove the rear floor console.
Installation 1.
To install, reverse the removal procedure.
