Auxiliary Climate Control




Thermostatic Expansion Valve

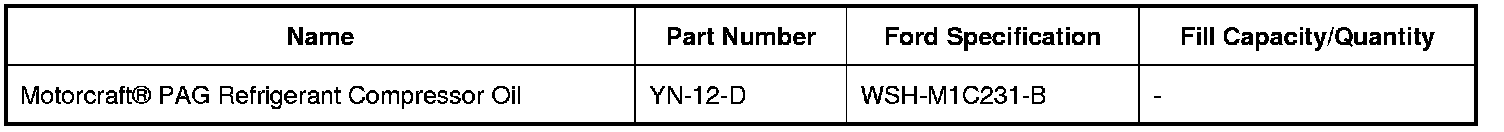

Material(s)

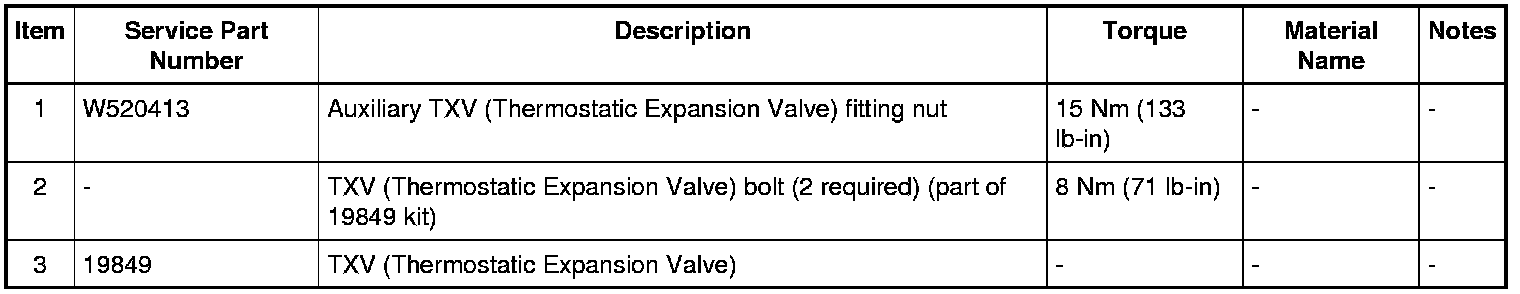

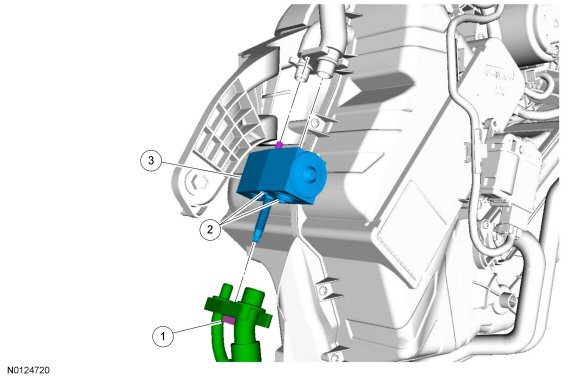

Exploded View










Removal

1. Remove the auxiliary climate control housing. REFER to Thermostatic Expansion Valve.

2. NOTICE: The auxiliary line floorpan bracket screws are loosened only to allow the auxiliary evaporator tubes to be positioned away from the auxiliary TXV (Thermostatic Expansion Valve). Do not fully disassemble the floorpan bracket or separate the floorpan gasket from the bracket. If the floorpan gasket is separated from the bracket, or if it is damaged, a new gasket must be installed to avoid noise and water leak concerns.

Loosen the 2 auxiliary line floorpan bracket screws.

- To install, tighten to 1 Nm (9 lb-in).

3. Remove the auxiliary TXV (Thermostatic Expansion Valve) fitting nut and disconnect the fitting.

- Discard the O-ring seals.

- To install, tighten to 15 Nm (133 lb-in).

4. Remove the 2 auxiliary TXV (Thermostatic Expansion Valve) bolts and the auxiliary TXV (Thermostatic Expansion Valve).

- Discard the O-ring seals.

- To install, tighten to 8 Nm (71 lb-in).

Installation

1. To install, reverse the removal procedure.

1. Install new O-ring seals.

2. Add the correct amount of clean PAG (Polyalkylene Glycol) oil to the refrigerant system. REFER to Refrigerant Oil Adding Refrigerant Oil Adding.
