Installation

Engine









WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. NOTICE: Prior to installation of the engine, the torque converter pilot hub must be lubricated with multi-purpose grease or damage to the torque converter or the engine crankshaft can occur

Lubricate the torque converter pilot hub with multi-purpose grease.





2. Align the torque converter stud and flexplate hole near the paint marks at the 12 o'clock position.

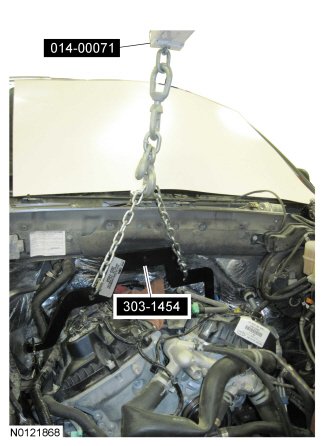

3. Using the Heavy Duty Floor Crane and Engine Spreader Bar, position the engine in the engine compartment.





4. NOTE: The transmission wiring harness is part of the engine wiring harness.

Attach the generator wiring harness retainer to the lower LH side of the engine block.

- Position the transmission wiring harness along the side of the transmission for installation.





5. Using the Heavy Duty Floor Crane and Engine Spreader Bar, position the engine to the transmission.





6. Align the engine to the transmission and install the 2 LH bellhousing-to-oil pan bolts.
- Tighten to 48 Nm (35 lb-ft).





7. Using the Heavy Duty Floor Crane and Engine Spreader Bar, raise the engine for clearance for the LH engine support insulator.





8. NOTICE: Use only hand tools when installing the LH engine support insulator through bolt or the engine support insulator may be damaged.

NOTE: Clean the LH and RH engine support insulator-to-frame mating surfaces of any dirt or foreign material prior to installation.

NOTE: Apply threadlock to the bolt threads prior to installation.

Install the LH engine support insulator and the through bolt.

- Do not torque at this time.





9. Lower the engine.

10. NOTE: Apply threadlock to the bolt threads prior to installation.

Install the 3 LH engine support insulator bolts.

- Tighten to 175 Nm (129 lb-ft).





11. NOTE: Apply threadlock to the stud threads prior to installation.

Install the 2 RH engine support insulator studs.

- Tighten to 15 Nm (133 lb-in).





12. NOTICE: Use only hand tools when installing the RH engine support insulator nuts or the engine support insulator may be damaged.

NOTE: Apply threadlock to the nut threads prior to installation.

Install the 2 RH engine support insulator nuts.

- Tighten to 250 Nm (184 lb-ft).





13. NOTICE: Use only hand tools when tightening the LH engine support insulator through bolt or the engine support insulator may be damaged.

Tighten the LH engine mount through bolt.

- Tighten to 350 Nm (258 lb-ft).





14. NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

- Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.





15. Install LH bellhousing-to-engine bolt.
- Tighten the bolt, it will be torqued at a later step.





16. Install the engine-to-bellhousing bolt.
- Tighten the bolt, it will be torqued at a later step.





17. Install the oil pan-to-bellhousing bolt.
- Tighten to 48 Nm (35 lb-ft).





18. Tighten the engine-to-bellhousing bolt.
- Tighten to 48 Nm (35 lb-ft).





19. Install the LH bellhousing-to-engine bolt.
- Tighten to 48 Nm (35 lb-ft).





20. Tighten LH bellhousing-to-engine bolt.
- Tighten to 48 Nm (35 lb-ft).





21. Install the 4 upper bellhousing-to-engine bolts.
- Tighten to 48 Nm (35 lb-ft).





22. NOTE: LH shown, RH similar.

Install the new 2 LH and RH catalytic convertor-to-exhaust manifold nuts.

- Tighten to 45 Nm (35 lb-ft).





23. NOTE: LH shown, RH similar.

Install the 2 LH and 2 RH catalytic convertor support bracket bolts from the transmission.

- Tighten to 90 Nm (66 lb-ft).





24. Install the 4 torque converter nuts.
- Tighten to 44 Nm (32 lb-ft).





25. Install the access cover and the 2 pin-type retainers.





26. Attach the starter motor wiring harness retainer to the oil pan.





27. Install the starter motor. For additional information, refer to Starting System Starter Motor.

28. If equipped, install the front driveshaft. For additional information, refer to Driveshaft Driveshaft - Front.

29. Connect the transmission vehicle harness connector by pushing the connector into the transmission and twisting the outer shell.





30. Connect the electrical connector retainer to the bracket at the rear of the transmission.
- Connect the Heated Oxygen Sensor (HO2S) electrical connector.





31. NOTE: Only one wire harness retainer and one electrical connector shown, others similar.

If equipped, connect the 5 transmission wire harness retainers to the transfer case wire harness.

- Connect the 2 HO2S electrical connector retainers.

- Connect the 2 HO2S electrical connectors.





32. Connect the HO2S electrical connector to the wiring harness retainer.
- Connect the HO2S electrical connector to the engine wiring harness at the rear of the LH cylinder head.





33. Install the cowl panel and attach the 2 clips and install the 6 screws.





34. Install the cowl panel grille. For additional information, refer to Front End Body Panels Service and Repair.

35. Install the ground strap and bolt to the cowl.
- Tighten to 10 Nm (89 lb-in).





36. Attach the wiring harness retainers to the rear of the RH valve cover stud bolt and the rear of the RH cylinder head.





37. Connect the 2 coolant hoses to the degas bottle.





38. Connect the 2 heater hose couplings at the RH rear of the engine.





39. Install the intake manifold.

40. Install the fuel injection pump. For additional information, refer to Fuel Charging and Controls - 3.5L GTDI Fuel Injection Pump.

41. Attach and connect the engine harness electrical connector.





42. Connect the middle PCM electrical connector.
- Attach the wiring harness retainer to the fender splash shield.





43. Install the generator. For additional information, refer to Charging System Engine.

44. Connect the A/C compressor electrical connector.
- Attach the A/C compressor wiring harness to the A/C compressor.





45. Attach the generator wiring harness to the engine front cover.





46. Install the transmission cooler line bracket and nut to the engine front cover stud bolt.
- Tighten to 12 Nm (106 lb-in).





47. Using a new O-ring seal and gasket seal, install the A/C tube and the nut.
- Tighten to 15 Nm (133 lb-in).





48. Connect the Battery Junction Box (BJB) wiring harness and the A/C pressure transducer electrical connectors.





49. Fill the engine with clean engine oil.

50. Install the 2 Charge Air Cooler (CAC) inlet tubes and the CAC outlet tube. For additional information, refer to 3.5L Gasoline Turbocharged Direct Injection (GTDI) Charge Air Cooler (CAC) and Tubes Exploded View in Intake Air Distribution and Filtering [1][2]Diagrams.

51. Install the LH and RH turbocharger intake tubes. For additional information, refer to 3.5L Gasoline Turbocharged Direct Injection (GTDI) Charge Air Cooler (CAC) and Tubes Exploded View in Intake Air Distribution and Filtering [1][2]Intercooler and [1][2]Diagrams.

52. Install the cooling module. For additional information, refer Engine Cooling Cooling Module.

53. If equipped, connect the block heater electrical connector at the thermostat housing.
- Attach the block heater wiring harness retainer to the LH valve cover stud bolt.





54. Connect the battery ground cable. For additional information, refer to Battery, Mounting and Cables Battery Disconnect.

55. NOTE: Align the index marks made during hood removal.

NOTE: RH shown, LH similar.

Position the hood and install the 4 bolts.

- Tighten to 12 Nm (106 lb-in).





56. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
