Auxiliary Blower Motor: Service and Repair




Auxiliary Blower Motor

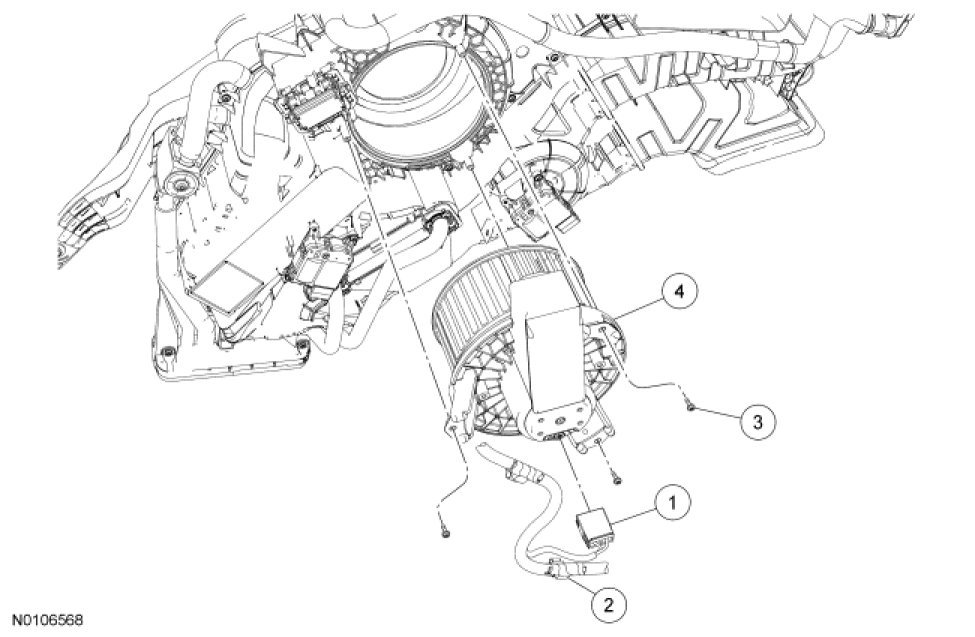

Removal and Installation

1. Remove the LH quarter trim panel. For additional information, refer to Interior Trim and Ornamentation Quarter Trim Panel.

2. Disconnect the auxiliary blower motor electrical connector.

3. Detach the 2 auxiliary wire harness clips from the auxiliary heater core and evaporator core housing and position the wire harness away from the blower motor.

4. Remove the 3 auxiliary blower motor screws.

5. Remove the auxiliary blower motor.

6. To install, reverse the removal procedure.
