Audio Input Jack

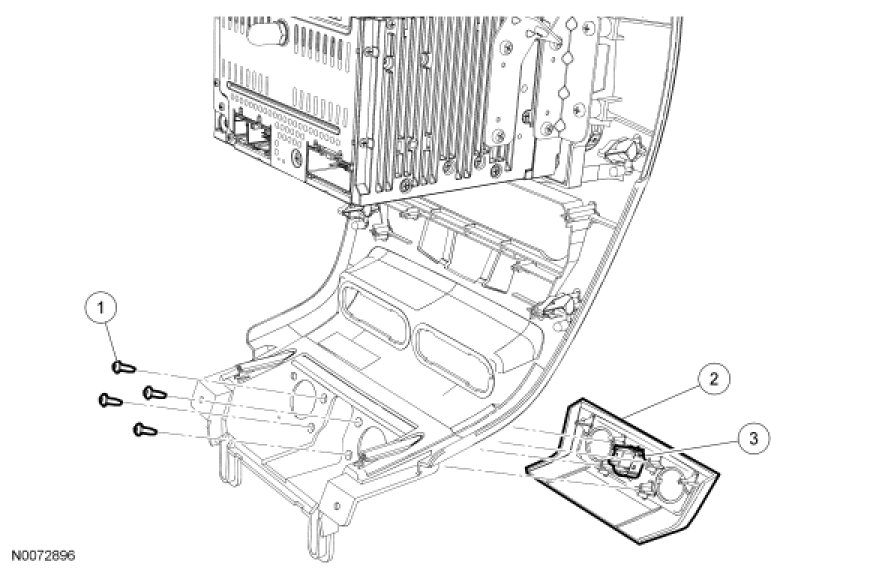

Audio Input JackRemoval and Installation 1.
Remove the instrument panel center finish panel. For additional information, refer to Instrument Panel and Console
Instrument Panel Finish Panel - Center.
2.
Remove the 4 screws and separate the audio input jack bezel from the instrument panel center finish panel.
3.
Release the tabs and remove the audio input jack.
4.
To install, reverse the removal procedure.
