Brake Caliper Anchor Plate
Brake Caliper Anchor PlateRemoval and Installation 1.
Remove the
brake pads. For additional information, refer to Brake Pads
Service and Repair.
2.

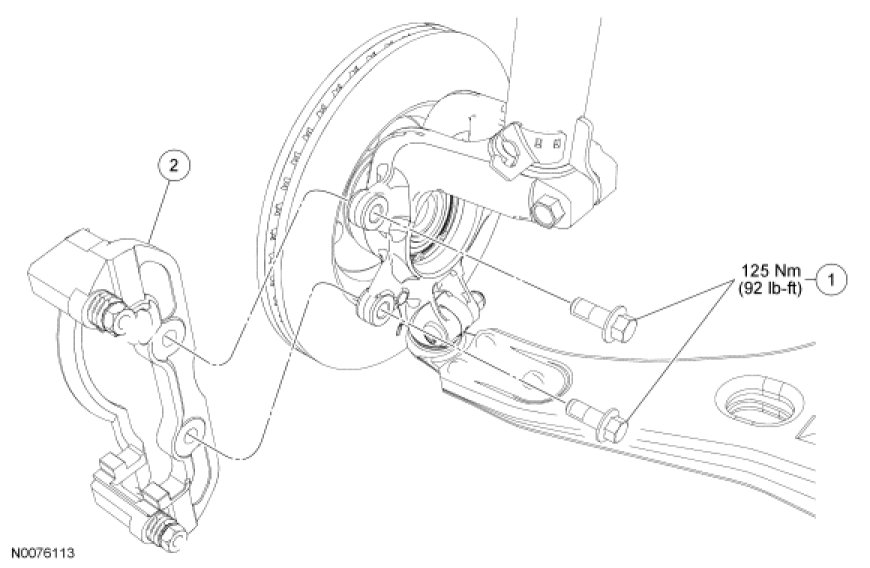

Remove the 2 bolts and the
brake caliper anchor plate.
-
Discard the bolts.
-
To install, tighten the new bolts to 125 Nm (92 lb-ft).
3.
To install, reverse the removal procedure.
-
Apply brakes several times to verify correct brake operation.
