Air Inlet Duct

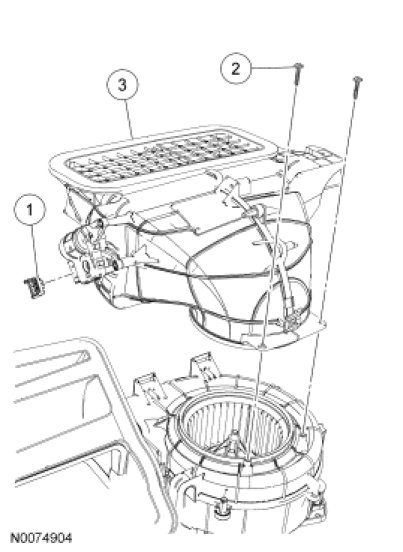

Air Inlet DuctRemoval and Installation 1.
Remove the
heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing
Service and Repair.
2.
Disconnect the air inlet mode door actuator electrical connector.
3.
Remove the 2 air inlet duct screws.
4.
Detach and remove the air inlet duct.
5.
To install, reverse the removal procedure.
