Transaxle Support Insulator

Transaxle Support Insulator





Transaxle Support Insulator









Removal

1. Remove the battery tray. For additional information, refer to Battery, Mounting and Cables Battery Tray.

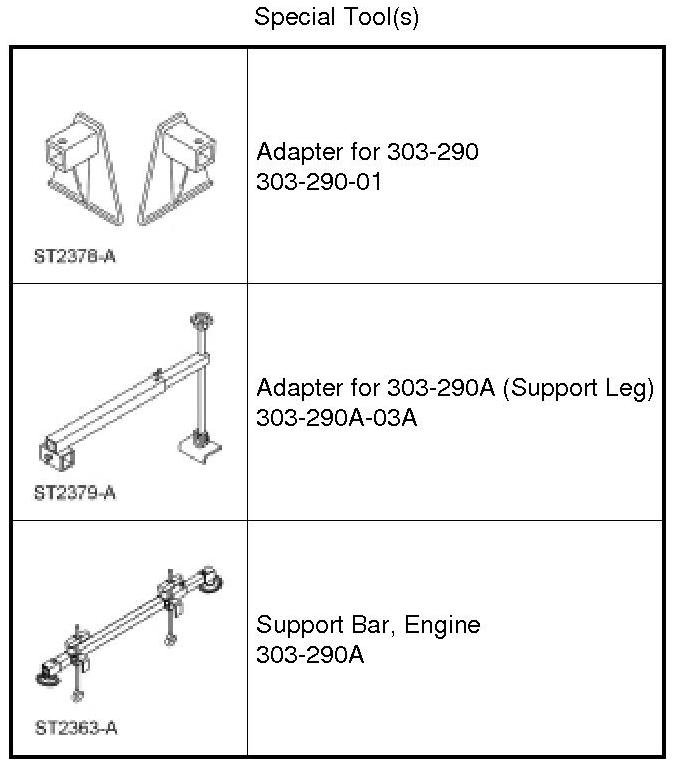

2. Install the Engine Support Bar and Adapters and support the engine.





3. Remove the transaxle support bolt and nuts and remove the transaxle support insulator.





Installation

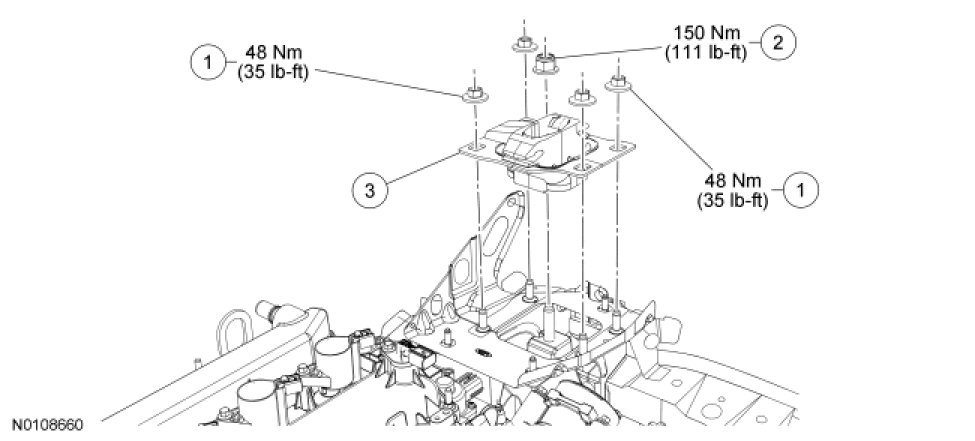

1. Install the transaxle support insulator nuts.
- Install the 4 support insulator-to-body nuts.
- Tighten to 48 Nm (35 lb-ft).

- Install the support insulator-to-bracket nut.
- Tighten to 150 Nm (111 lb-ft).





2. Remove the Engine Support Bar and Adapters.





3. Install the battery tray. For additional information, refer to Battery, Mounting and Cables Battery Tray.
