Transaxle Support Insulator - LH




Transaxle Support Insulator - LH

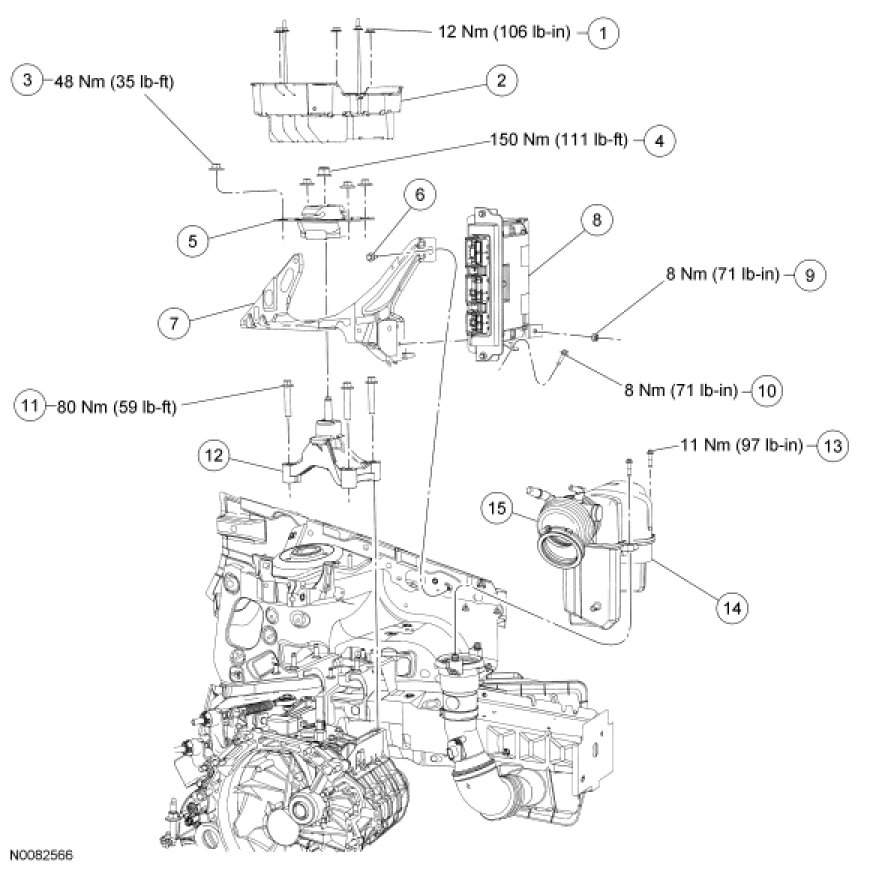

1. Remove the battery. For additional information, refer to Battery, Mounting and Cables Battery.

2. Release the 2 wiring harness pushpins, then remove the 3 battery tray nuts and the battery tray.
- To install, tighten to 12 Nm (106 lb-in).

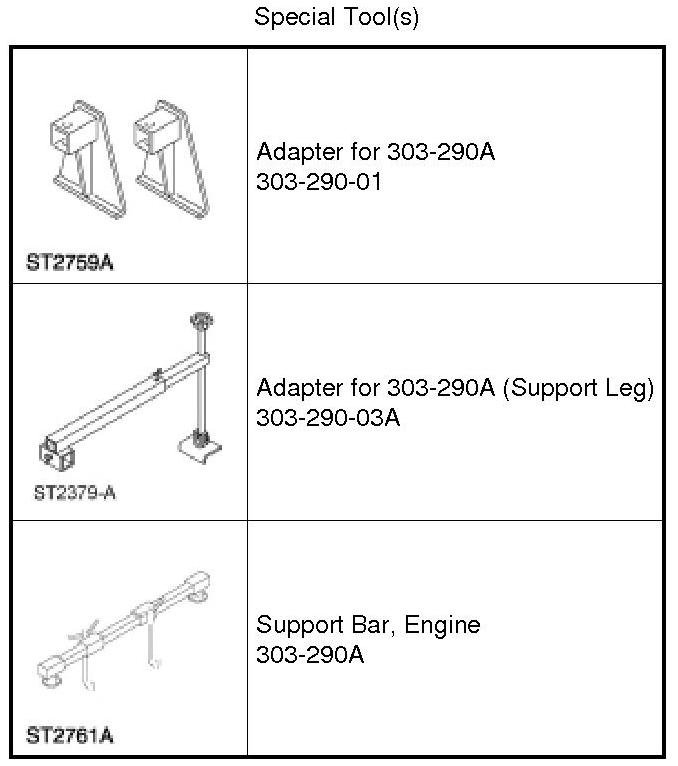

3. Install the Engine Support Bar and Adapters.





4. Remove the 5 LH transaxle support insulator nuts and the LH transaxle support insulator.
- To install, tighten the center nut to 150 Nm (111 lb-ft).

- To install, tighten the outer nuts to 48 Nm (35 lb-ft).





5. To install, reverse the removal procedure.
