Vacuum Reservoir HVAC: Service and Repair




Vacuum Reservoir

Removal and Installation

1. Remove the engine Air Cleaner (ACL). For additional information, refer to Intake Air Distribution and Filtering [1][2]Diagrams.

2. Remove the RH front fender splash shield. For additional information, refer to Front End Body Panels Fender Splash Shield.

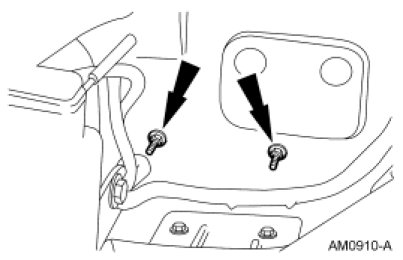

3. Remove the nuts and the vacuum reservoir tank and bracket.





4. Disconnect the vacuum connectors.





5. To install, reverse the removal procedure.
