Idle Speed/Throttle Actuator - Electronic: Service and Repair

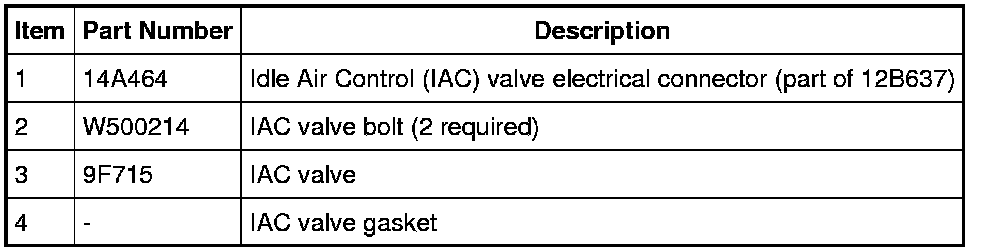

Idle Air Control (IAC) Valve - 2.3LRemoval and Installation 1.
Disconnect the Idle Air Control (IAC) valve electrical connector.
2.
Remove the 2 bolts, the IAC valve and discard the gasket.
-
To install, tighten to 10 Nm (89 lb-in).
3.
To install, reverse the removal procedure.
-
Install a new gasket.
