Seat Position Sensor: Service and Repair

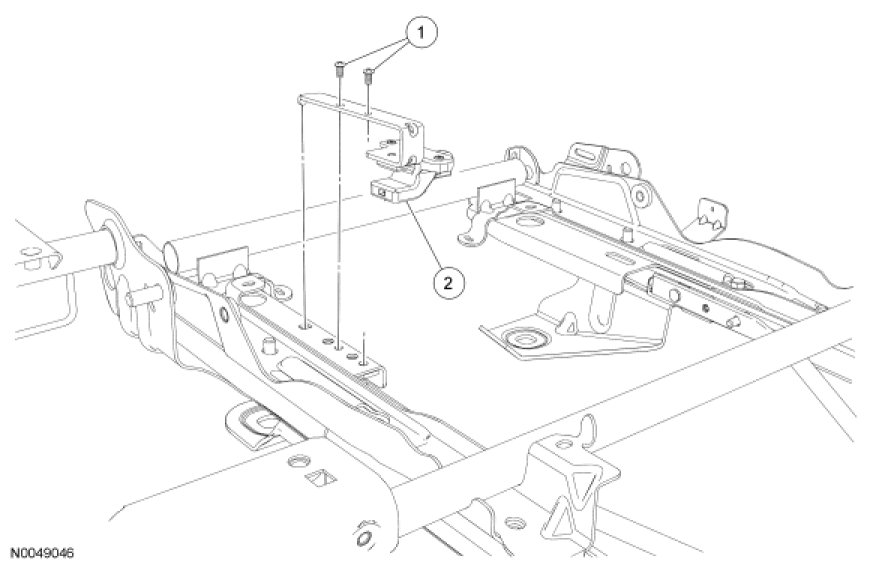

Seat Position Sensor

NOTE: 60 percent seat track shown, 40 percent similar.











Removal and Installation

WARNING: Always tighten the seat position sensor retaining bolt to specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the driver seat track. For additional information, refer to Seating Seat Track.

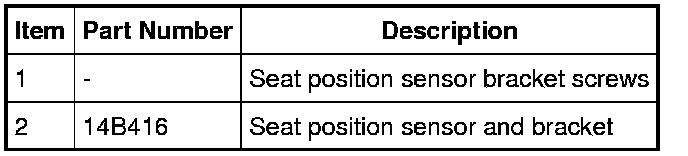

2. Remove the 2 screws, seat position sensor and bracket.

3. Disconnect the electrical connector.

4. To install, reverse the removal procedure.
