Pinpoint Test C: the Transmission Control Switch (TCS) Is Not Operating Correctly




External Controls

Pinpoint Tests

PINPOINT TEST C: THE TRANSMISSION CONTROL SWITCH (TCS) IS NOT OPERATING CORRECTLY

-------------------------------------------------
C1 TEST FUSE 20 (10A)

- Ignition OFF.
- Check fuse: 20 (10A).
- Is the resistance less than 5 ohms?

Yes
GO to C3.

No
GO to C2.

-------------------------------------------------
C2 CHECK THE VOLTAGE TO THE TCS

- Ignition OFF.
- Disconnect: Transmission Control Switch (TCS) C279.
- Ignition ON.
- Measure the voltage between TCS C279-A circuit CBP20 (YE/VT), harness side and ground.




- Is the voltage greater than 10 volts?

Yes
GO to C3.

No
REPAIR circuit CBP20 (YE/VT). TEST the system for normal operation.

-------------------------------------------------
C3 CHECK THE TCS

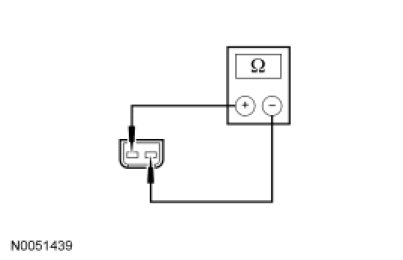

- Measure the resistance between TCS C279-A and C279-B, component side, while pressing and releasing the TCS.




- Is the resistance less than 5 ohms with the TCS pressed and greater than 10,000 ohms with the TCS released?

Yes
GO to C4.

No
INSTALL a new TCS. TEST the system for normal operation.

-------------------------------------------------
C4 CHECK CIRCUIT CET34 (BN/GN) FOR AN OPEN

- Ignition OFF.
- Disconnect: PCM C175B.

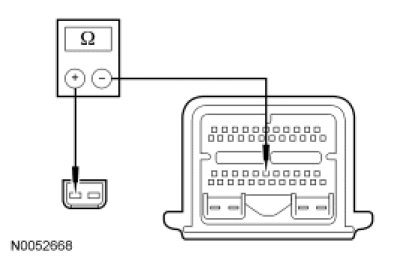

- Measure the resistance between the TCS C279-B and PCM C175B-29, circuit CET34 (BN/GN), harness side.




- Is the resistance less than 5 ohms?

Yes
INSTALL a new PCM. TEST the system for normal operation.

No
REPAIR circuit CET34 (BN/GN). TEST the system for normal operation.

-------------------------------------------------
