Synchronizers

Synchronizers

Disassembly

1. NOTE: Mark parts for assembly.

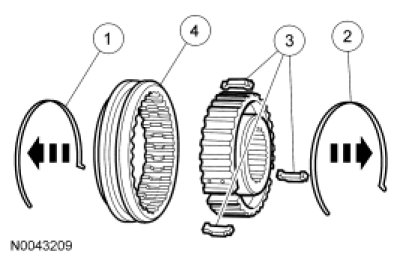

Disassemble the synchronizer.

1. Remove the retaining spring.

2. Turn the synchronizer over and remove the opposite retaining spring.

3. Remove the 3 insert keys.

4. Remove the sleeve.





2. Inspect all the synchronizer components for wear and damage.

Assembly

1. NOTE: Match the marked parts for assembly.

Assemble the synchronizer.

1. Install the sleeve.

2. Install the insert keys.

3. Install the retaining spring.

4. Turn the synchronizer over and install the opposite retaining spring.
