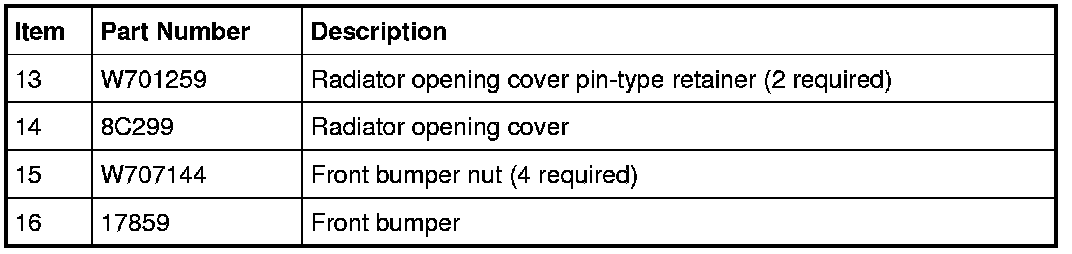

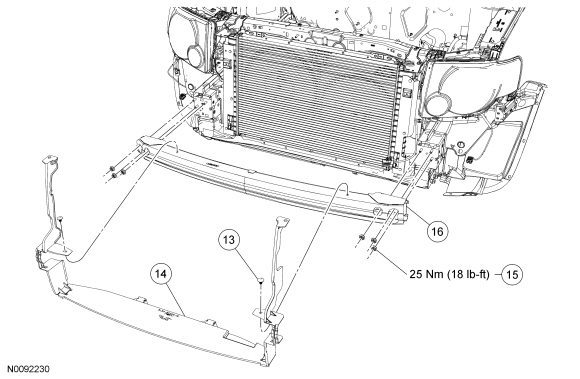

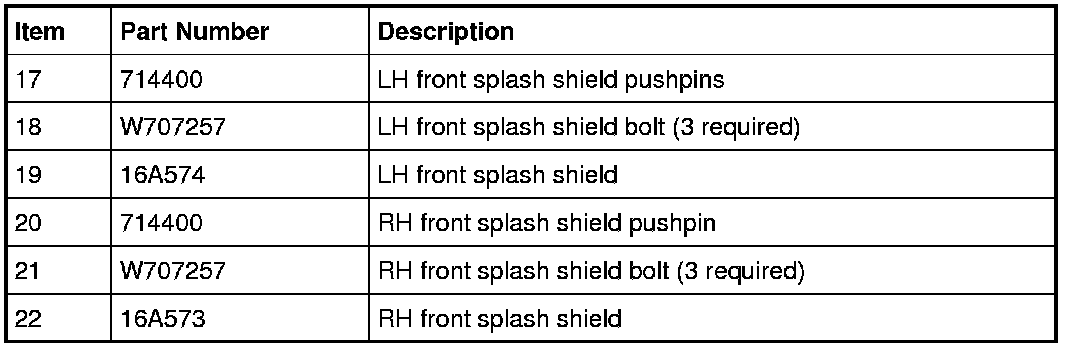

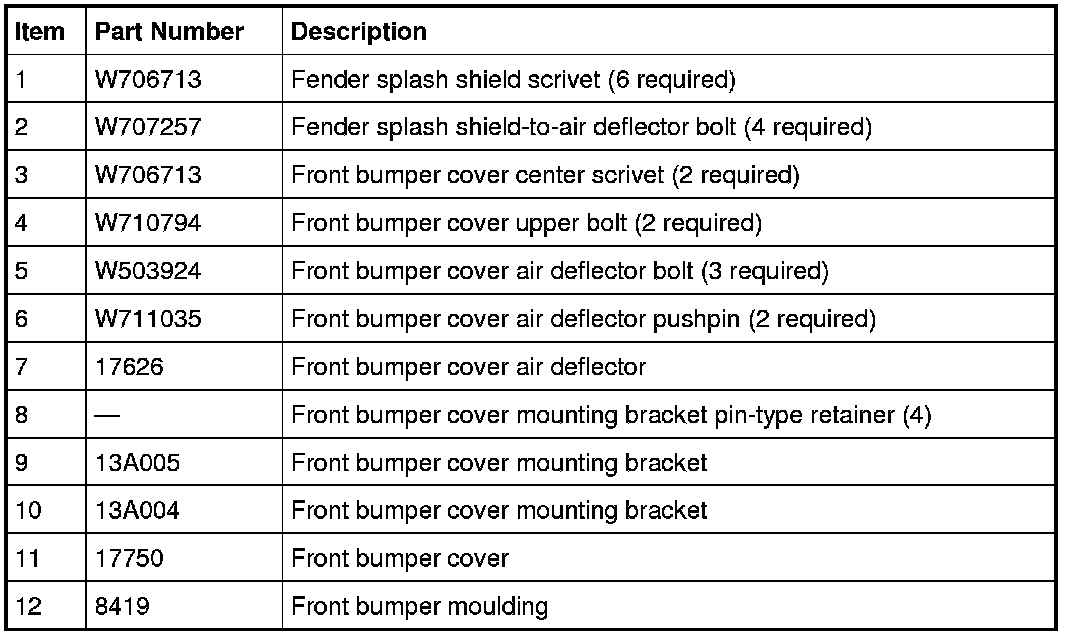

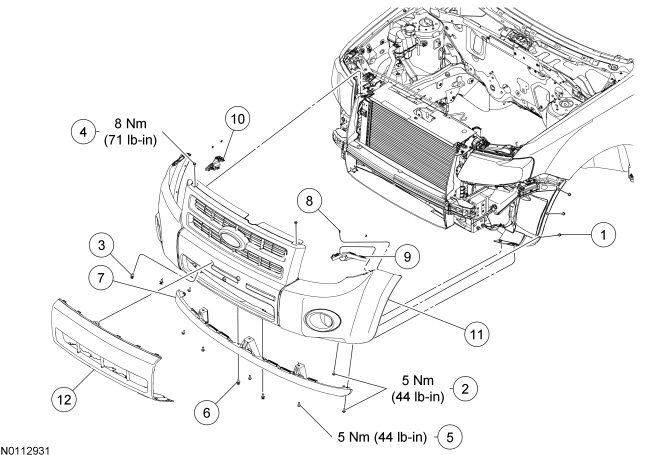

Bumper - Exploded View, Front




Bumper - Exploded View, Front

NOTICE: It is necessary to cut or grind off the barbed tabs to remove the front bumper moulding, to prevent damage to the front bumper cover.

NOTE: The front bumper cover mounting bracket pin-type retainers (item 8) are factory installed for assembly purposes and are not released for service. The pin-type retainers must be broken and discarded during front bumper cover removal and are not needed for reassembly.

NOTE: Escape shown, all other vehicles similar.
