Driver/Vehicle Information Display: Service and Repair




Message Center Switch

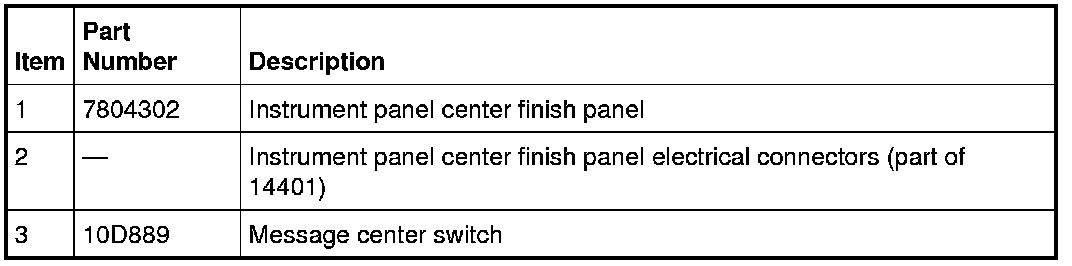

Expedition

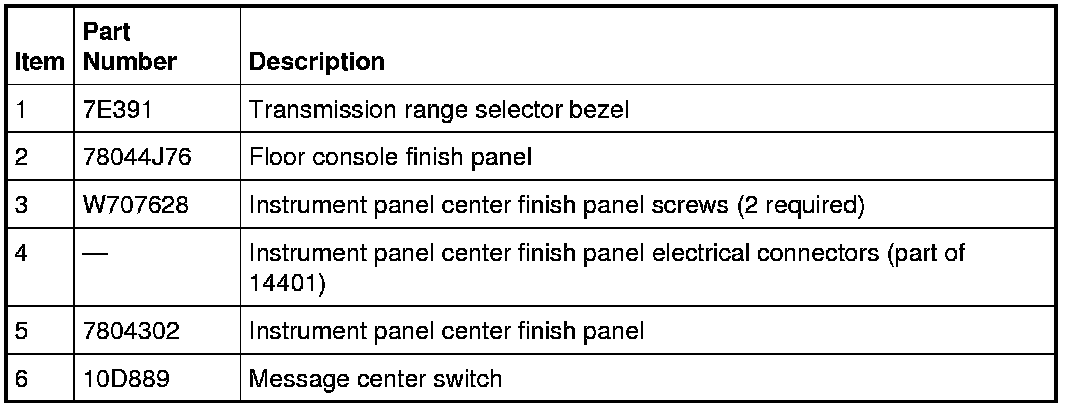

Navigator









Removal and Installation

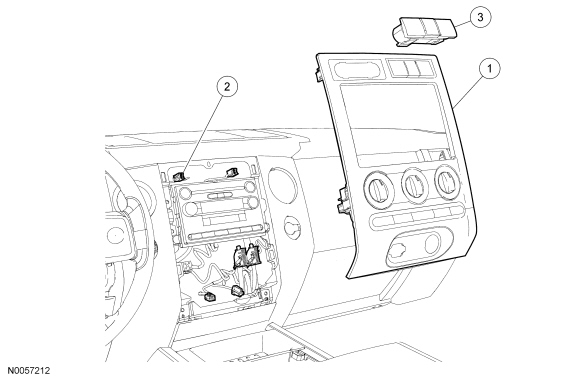

Expedition

1. Pull the instrument panel center finish panel straight out to release the retaining clips.

Navigator

2. NOTE: The transmission selector lever bezel is held in place by 4 tabs that are located in the shifter assembly.

Remove the transmission selector lever bezel.


3. Open the floor console compartment door and pull the floor console finish panel straight up to release the retainer clips.

4. Remove the 2 screws and pull the instrument panel center finish panel straight out to release the retainer clips.
- Position the instrument panel center finish panel aside.


All vehicles

5. Disconnect the electrical connectors.

6. Press the 4 retaining tabs and remove the message center switch from the center instrument panel finish panel.

7. To install, reverse the removal procedure.
