Radiator Grille
Radiator GrilleExpeditionNavigatorRemoval and InstallationAll vehicles 1.
Remove the front
bumper cover.
Expedition only 2.

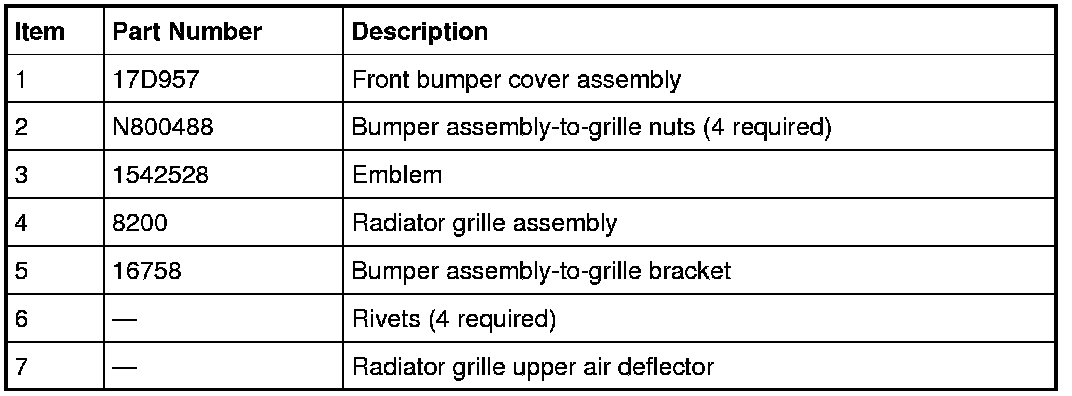

Remove the 4
bumper assembly-to-
grille bracket retainer nuts and the bumper assembly-to-grille bracket.
All vehicles 3.

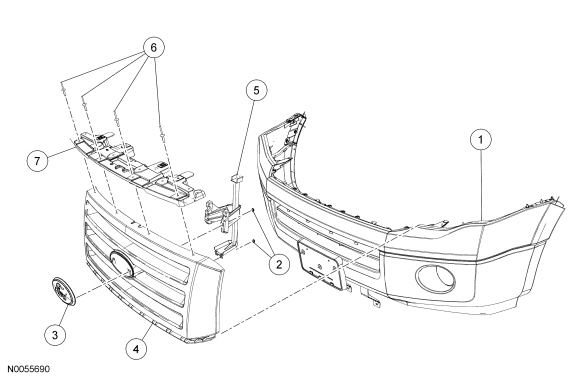

NOTE: Expedition shown, Navigator similar.

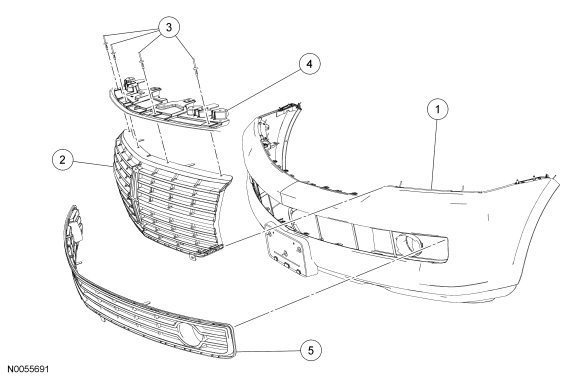

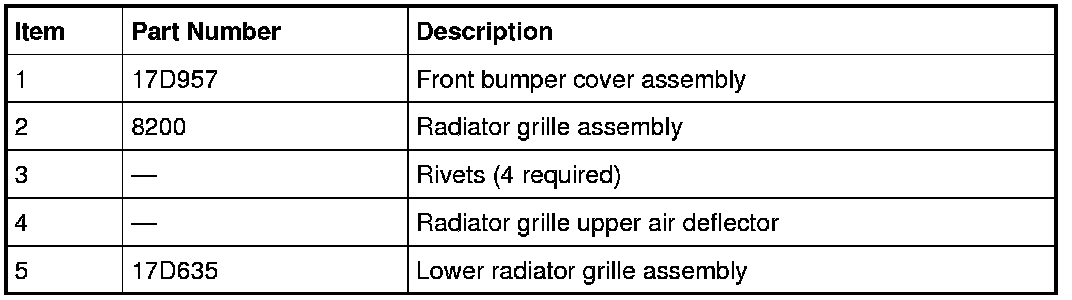

Remove the clips and remove the front
grille.
4.
To install, reverse the removal procedure.
