Valve Train Components - Exploded View




Valve Train Components - Exploded View

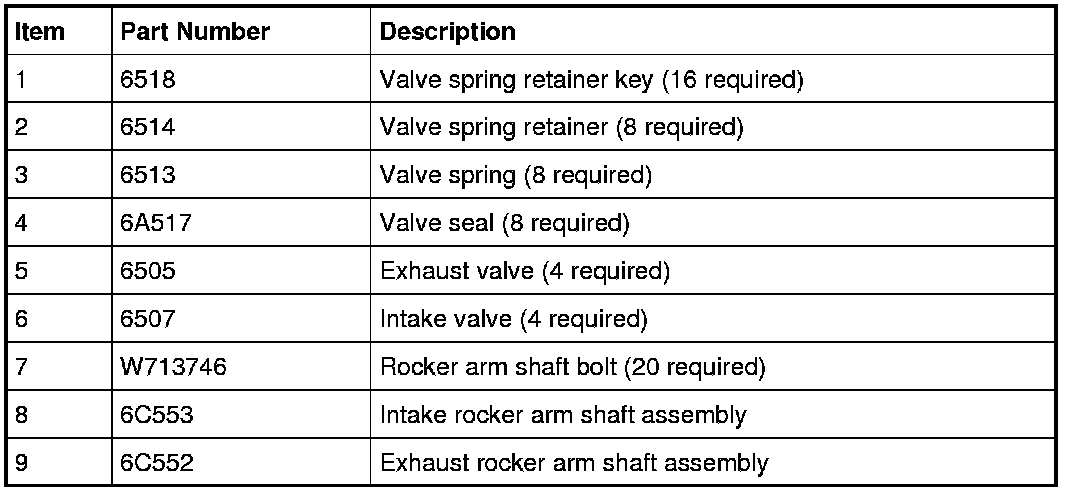

Rocker Arm Shafts, Valves, Valve Springs, Valve Spring Retainer Keys and Retainers

NOTE: LH shown, RH similar.

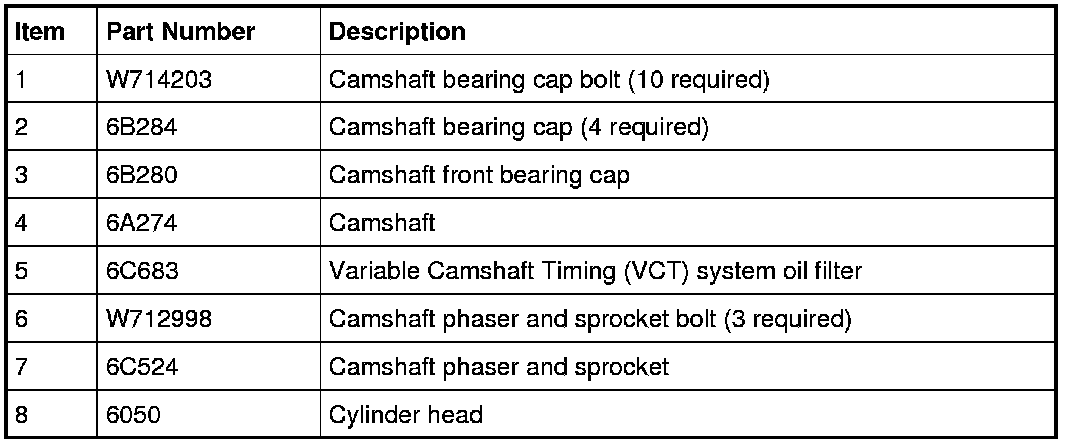

Camshaft Phaser and Sprocket, VCT (Variable Camshaft Timing) System Oil Filter, Camshaft Bearing Caps and Camshaft

NOTE: LH shown, RH similar.
