Transmission Cooler: Service and Repair

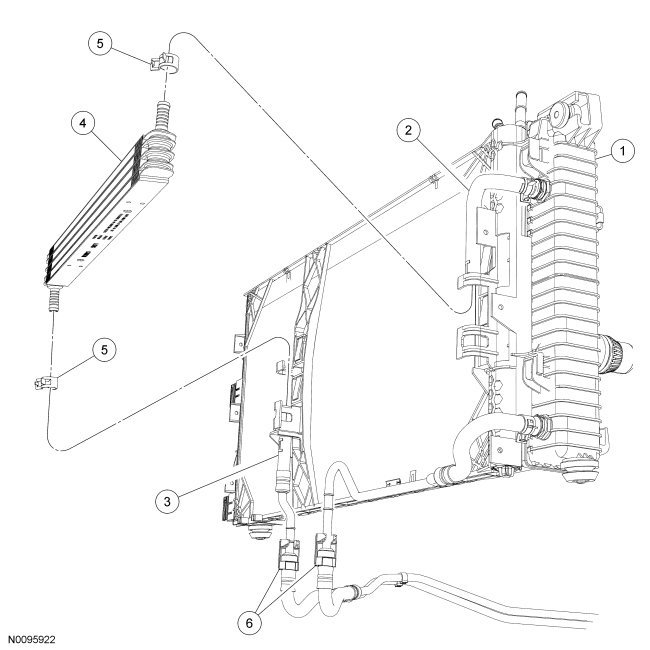

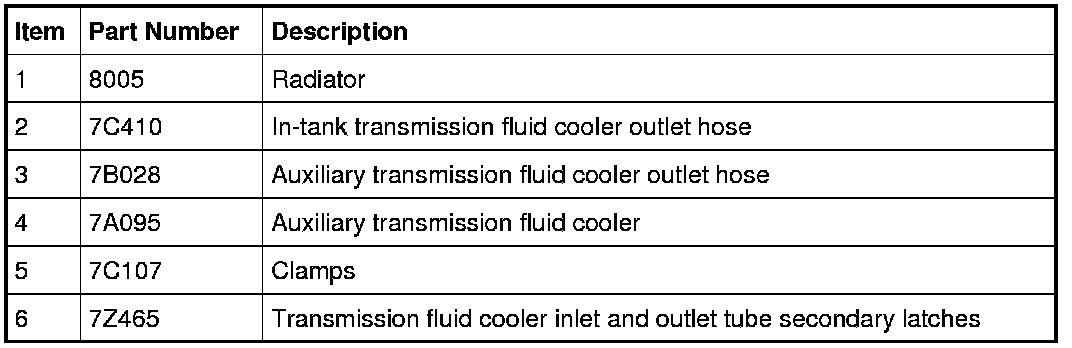

Transmission Fluid Cooler





Transmission Cooling









Removal

1. Remove the transmission fluid cooler inlet hose from the transmission fluid cooler.
- Discard the clamp.






2. Remove the transmission fluid cooler outlet hose from the transmission fluid cooler.
- Discard the clamp.






3. Remove the transmission fluid cooler.

Installation

1. Install the transmission fluid cooler.

2. Install a new transmission fluid cooler outlet hose clamp.

3. Install the transmission fluid cooler outlet hose to the transmission fluid cooler.





4. Install a new transmission fluid cooler inlet hose clamp.

5. Install the transmission fluid cooler inlet hose to the transmission fluid cooler.

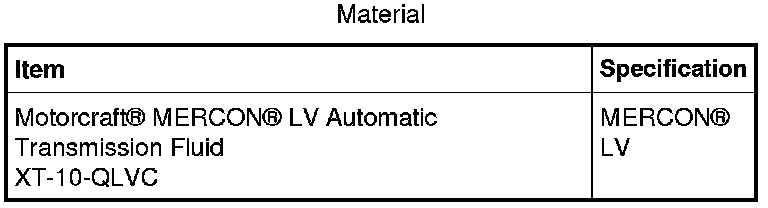

6. Fill the transmission with transmission fluid. For additional information, refer to Transmission Fluid Level Check in Automatic Transmission/Transaxle &/or Transmission Control Systems. Preliminary Inspection

7. Check for leaks.
